Sonde Balboa M7 (12 pouces)
Description du produit

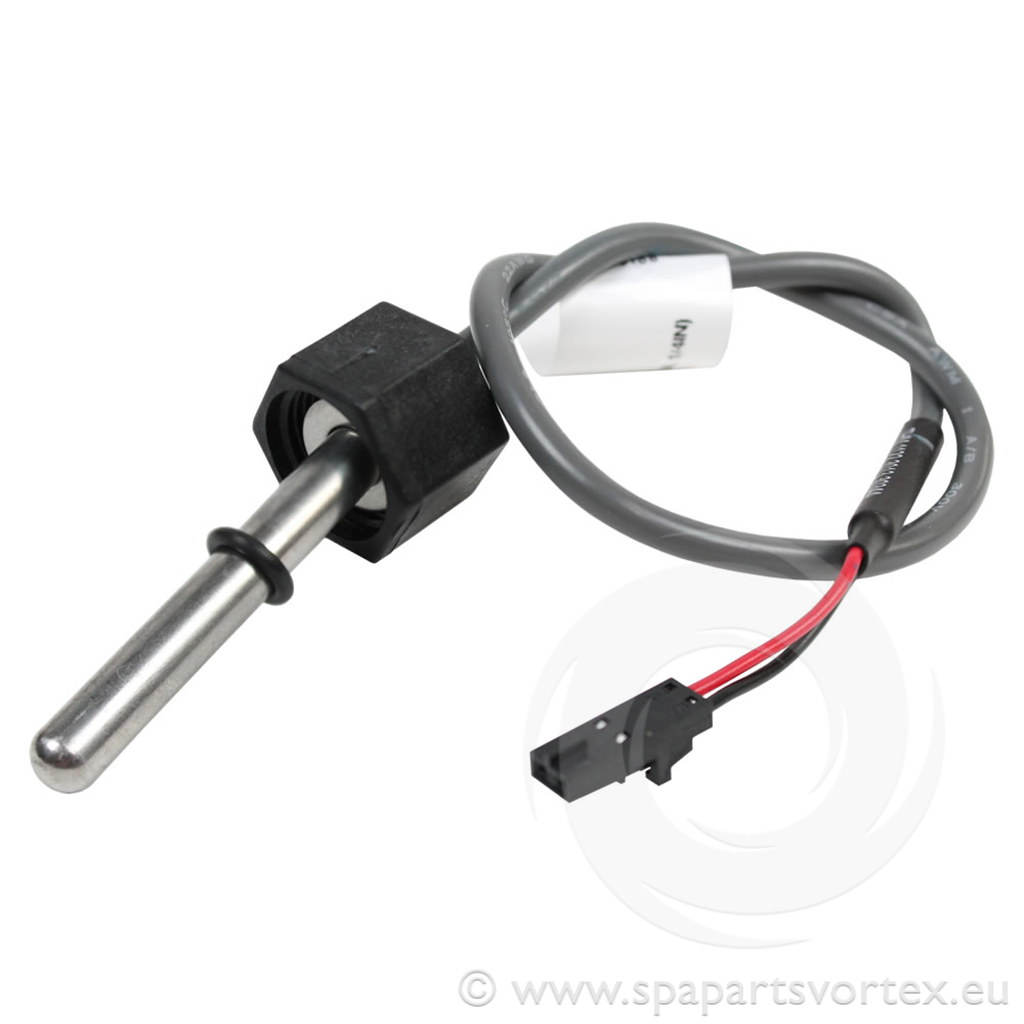

The sensor probe slides into the holder and is secured by a plastic nut. The flat plastic 2-pin plug connects directly to the PCB.
Temperature probe diameter: 6 mm. Hi-limit probe diameter: 6 mm.
Temperature cable length: 305 mm (12 inches). Hi-limit cable length: 305 mm (12 inches).
Commonly used with Balboa GS/GL Series such as GS501Z/GL2000 but not GL8000. Also used more recently on the Balboa BP series such as BP601 and BP2100. These sensors are also used on the Balboa Revolution series due to the shorter cable.
Note: If your current sensor has a longer cable (24 inches), make sure to order the longer version as the shorter cable will not reach the necessary connection point. All M7 sensors are calibrated the same, so the only decision is whether you need the long or short cable version.
Temperature probe diameter: 6 mm. Hi-limit probe diameter: 6 mm.
Temperature cable length: 305 mm (12 inches). Hi-limit cable length: 305 mm (12 inches).
Commonly used with Balboa GS/GL Series such as GS501Z/GL2000 but not GL8000. Also used more recently on the Balboa BP series such as BP601 and BP2100. These sensors are also used on the Balboa Revolution series due to the shorter cable.
Note: If your current sensor has a longer cable (24 inches), make sure to order the longer version as the shorter cable will not reach the necessary connection point. All M7 sensors are calibrated the same, so the only decision is whether you need the long or short cable version.
Attributs du produit
| Marque: Balboa |
| Type de produit: Sonde de capteur |
| Modèle / Séries: M7 |
| Fonction du capteur: Température et limite haute |
Attributs du produit
| Marque: Balboa |
| Type de produit: Sonde de capteur |
| Modèle / Séries: M7 |
| Fonction du capteur: Température et limite haute |
Description du produit
The sensor probe slides into the holder and is secured by a plastic nut. The flat plastic 2-pin plug connects directly to the PCB.
Temperature probe diameter: 6 mm. Hi-limit probe diameter: 6 mm.
Temperature cable length: 305 mm (12 inches). Hi-limit cable length: 305 mm (12 inches).
Commonly used with Balboa GS/GL Series such as GS501Z/GL2000 but not GL8000. Also used more recently on the Balboa BP series such as BP601 and BP2100. These sensors are also used on the Balboa Revolution series due to the shorter cable.
Note: If your current sensor has a longer cable (24 inches), make sure to order the longer version as the shorter cable will not reach the necessary connection point. All M7 sensors are calibrated the same, so the only decision is whether you need the long or short cable version.
Temperature probe diameter: 6 mm. Hi-limit probe diameter: 6 mm.
Temperature cable length: 305 mm (12 inches). Hi-limit cable length: 305 mm (12 inches).
Commonly used with Balboa GS/GL Series such as GS501Z/GL2000 but not GL8000. Also used more recently on the Balboa BP series such as BP601 and BP2100. These sensors are also used on the Balboa Revolution series due to the shorter cable.
Note: If your current sensor has a longer cable (24 inches), make sure to order the longer version as the shorter cable will not reach the necessary connection point. All M7 sensors are calibrated the same, so the only decision is whether you need the long or short cable version.
