(Pack 1.1) Pack Balboa GS100 2kW + Balboa VL200, 1 pompe sans air
Description du produit
Dimensions: Length: 215 mm Width: 73 mm Height: 133 mm Topside: 110 mm x 40 mm Length of heater with unions: 375 mm
Volts: 230vac Hz: 50 Watts: Amps:16A
Pump 1: Dual speed pump 1
Air Blower: N/A
Heater: x 1 2kW, Heater is a separate unit which plugs into the board.
Ozone: x 1 (230vac)
Light: x1 12 volt Radio, TV/AV: Point available
Compatible With: Any retrofit system, suitable for upgrades
Connections: 1.5-inch socket heater union sleeves. Amp cables plug onto the PCB to operate the components.
Dimensions: Length: 215 mm Width: 73 mm Height: 133 mm Topside: 110 mm x 40 mm Length of heater with unions: 375 mm
Topside Buttons: Jets, Temp and Light

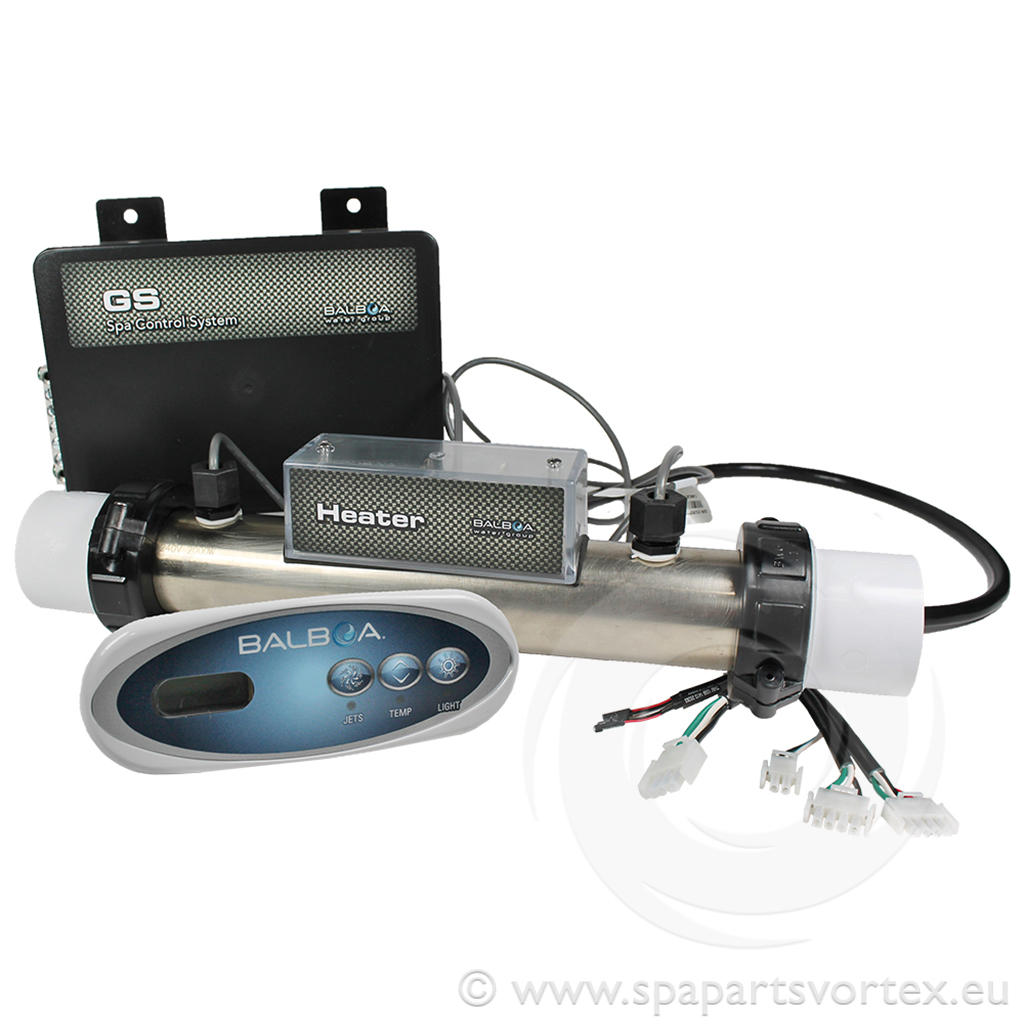

Items Included: 1 x Balboa Mini Oval LCD 3 BUTTON, 1 x Balboa 2.0KW Heater M7 (For new GS100), 1 x (Box 1.1) Balboa GS100 Control System Complete (new style)
Additional Notes:
Touch pad not to scale, please check details below to confirm compatibility
* Cables not Included *
The M7 technology means you do not need to have sensors and flow switches going back into the tub as everything is done inside the control box by 2 sensorsAs this is only a 2.0kW system this makes it a useful entry-level system. The heater only draws around 8.5amps so if the system is designed to do so, you could have a small combined system running from a domestic 13amp supply. You must always consult a qualified electrician for accurate information prior to installation.
Volts: 230vac Hz: 50 Watts: Amps:16A
Pump 1: Dual speed pump 1
Air Blower: N/A
Heater: x 1 2kW, Heater is a separate unit which plugs into the board.
Ozone: x 1 (230vac)
Light: x1 12 volt Radio, TV/AV: Point available
Compatible With: Any retrofit system, suitable for upgrades
Connections: 1.5-inch socket heater union sleeves. Amp cables plug onto the PCB to operate the components.
Dimensions: Length: 215 mm Width: 73 mm Height: 133 mm Topside: 110 mm x 40 mm Length of heater with unions: 375 mm
Topside Buttons: Jets, Temp and Light
Items Included: 1 x Balboa Mini Oval LCD 3 BUTTON, 1 x Balboa 2.0KW Heater M7 (For new GS100), 1 x (Box 1.1) Balboa GS100 Control System Complete (new style)
Additional Notes:
Touch pad not to scale, please check details below to confirm compatibility
* Cables not Included *
The M7 technology means you do not need to have sensors and flow switches going back into the tub as everything is done inside the control box by 2 sensorsAs this is only a 2.0kW system this makes it a useful entry-level system. The heater only draws around 8.5amps so if the system is designed to do so, you could have a small combined system running from a domestic 13amp supply. You must always consult a qualified electrician for accurate information prior to installation.
Attributs du produit
| Marque: Balboa |
| Type de produit: Combo boîte et panneau |
| Longueur Max: 190mm |
| Hauteur Max: 150mm |
| Pompes Max: 1 |
| Puissance kW: 2.0kW |
| Circ Pump: Oui |
| Souffleur: Non |
| Profondeur Max: 60mm |
| Relais informatiques totaux: 2 |
| Dimension du chauffage: 1.5 pouces |
Attributs du produit
| Marque: Balboa |
| Type de produit: Combo boîte et panneau |
| Longueur Max: 190mm |
| Hauteur Max: 150mm |
| Pompes Max: 1 |
| Puissance kW: 2.0kW |
| Circ Pump: Oui |
| Souffleur: Non |
| Profondeur Max: 60mm |
| Relais informatiques totaux: 2 |
| Dimension du chauffage: 1.5 pouces |
