Balboa GS510SZ + VL701S
Description du produit

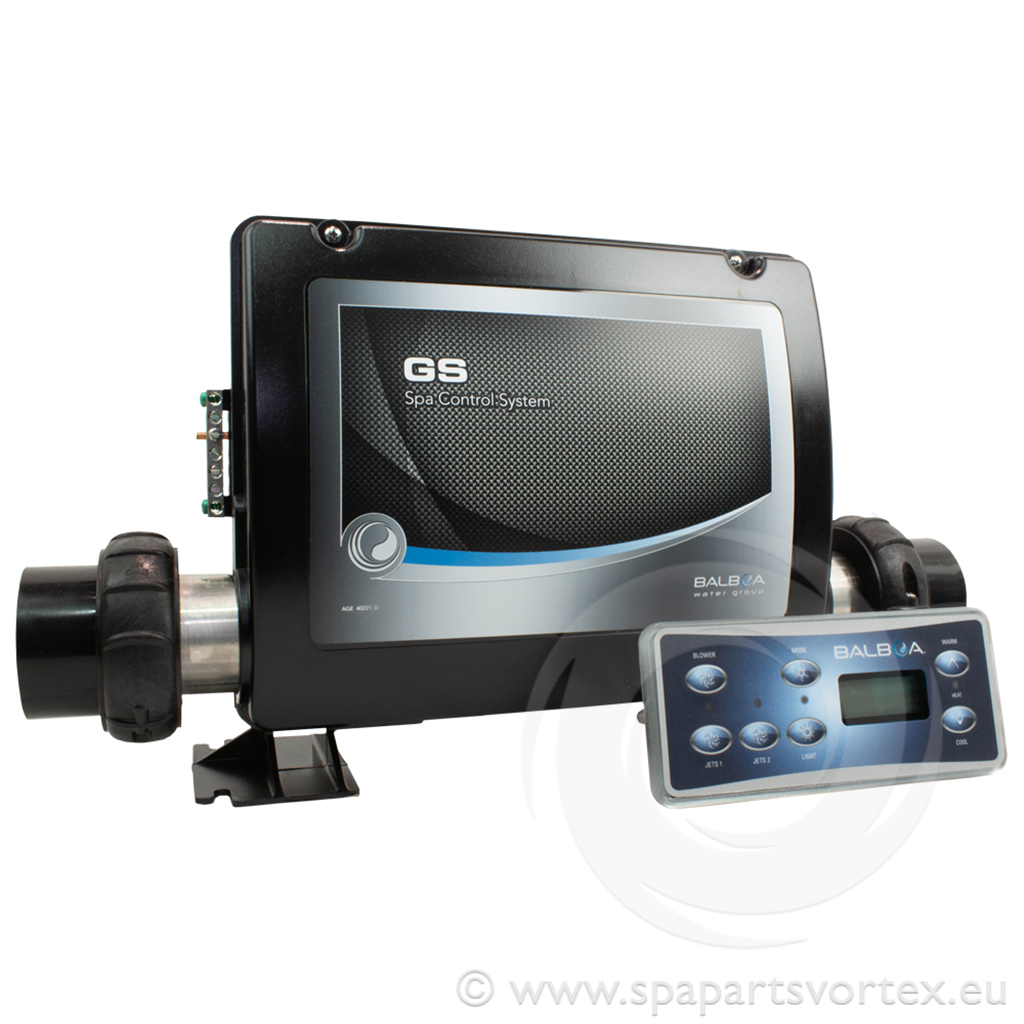

Balboa GS510SZ + VL701S – Complete Spa Control Upgrade
The Balboa GS510SZ with VL701S topside control offers a comprehensive spa control solution. This system is ideal for modernizing or upgrading your hot tub with support for essential components and optional features.
Specifications:
- Pump Support:
- Pump 1: Single or dual-speed, with optional circulation pump
- Pump 2: Single-speed
- Optional: Air blower
- Heater: 3kW
- Ozone: Single connection
- Light: 12V support
- AV: Radio, TV, or auxiliary connections available
Topside Control:
- Model: VL701S
- Buttons: Warm, Cool, Blower, Mode, Jets 1, Jets 2, and Light
Connections:
- 2-inch heater unions
- AMP cables interface with the PCB for all components
Dimensions:
- Control Box:
- Length: 500mm (including heater)
- Width: 120mm
- Height: 270mm
- Topside Control:
- Dimensions: 187mm x 83mm
Items Included:
- GS510SZ Control Box
- VL701S Topside Control
Additional Features:
- M7 Technology: Eliminates external flow switches and sensors by integrating them into the control box.
Box Quantity: 1
Attributs du produit
| Marque: Balboa |
| Type de produit: Combo boîte et panneau |
| Longueur Max: 420mm |
| Hauteur Max: 270mm |
| Pompes Max: 2 |
| Puissance kW: 3.0kW |
| Circ Pump: Oui |
| Souffleur: Oui |
| Profondeur Max: 100mm |
| Relais informatiques totaux: 4 |
| Dimension du chauffage: 2 pouces |
Attributs du produit
| Marque: Balboa |
| Type de produit: Combo boîte et panneau |
| Longueur Max: 420mm |
| Hauteur Max: 270mm |
| Pompes Max: 2 |
| Puissance kW: 3.0kW |
| Circ Pump: Oui |
| Souffleur: Oui |
| Profondeur Max: 100mm |
| Relais informatiques totaux: 4 |
| Dimension du chauffage: 2 pouces |
Description du produit
Balboa GS510SZ + VL701S – Complete Spa Control Upgrade
The Balboa GS510SZ with VL701S topside control offers a comprehensive spa control solution. This system is ideal for modernizing or upgrading your hot tub with support for essential components and optional features.
Specifications:
- Pump Support:
- Pump 1: Single or dual-speed, with optional circulation pump
- Pump 2: Single-speed
- Optional: Air blower
- Heater: 3kW
- Ozone: Single connection
- Light: 12V support
- AV: Radio, TV, or auxiliary connections available
Topside Control:
- Model: VL701S
- Buttons: Warm, Cool, Blower, Mode, Jets 1, Jets 2, and Light
Connections:
- 2-inch heater unions
- AMP cables interface with the PCB for all components
Dimensions:
- Control Box:
- Length: 500mm (including heater)
- Width: 120mm
- Height: 270mm
- Topside Control:
- Dimensions: 187mm x 83mm
Items Included:
- GS510SZ Control Box
- VL701S Topside Control
Additional Features:
- M7 Technology: Eliminates external flow switches and sensors by integrating them into the control box.
Box Quantity: 1
