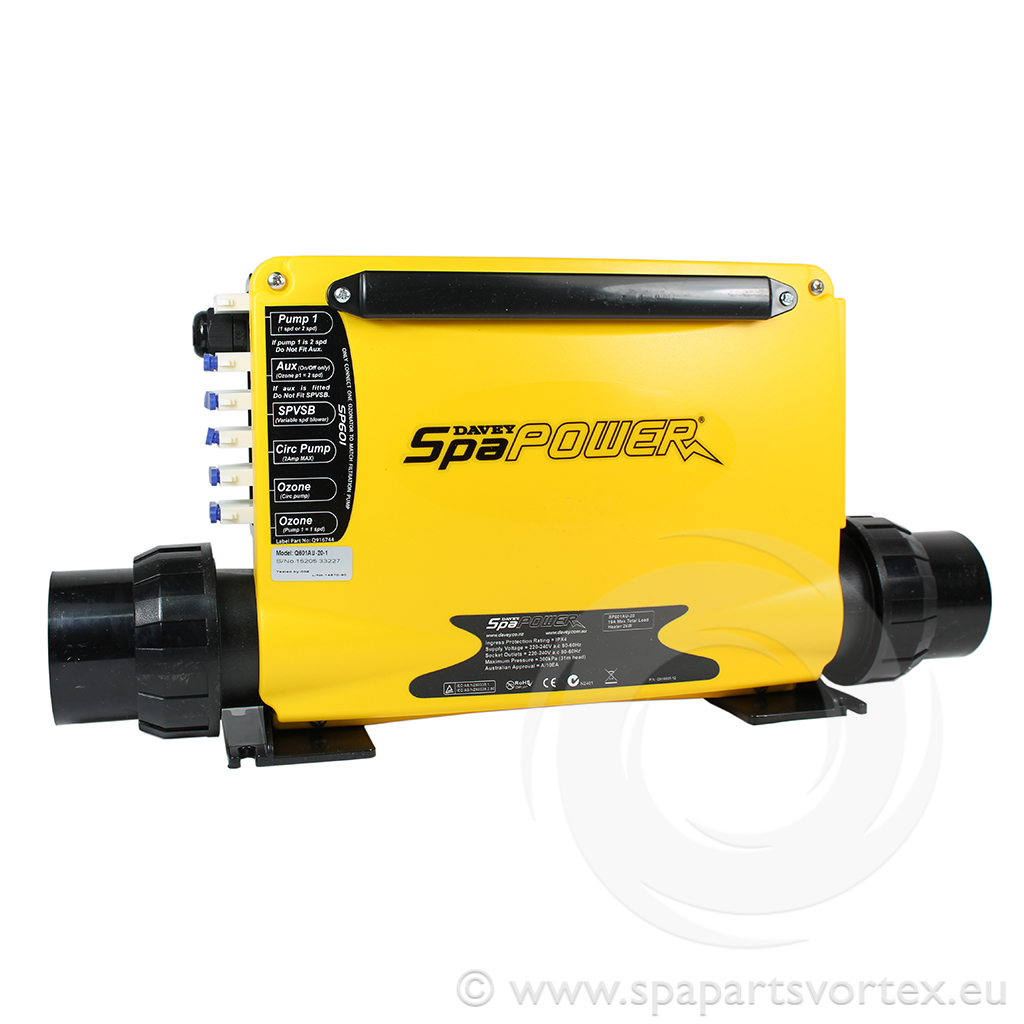

(Davey) Boitier Spa Power SP601 2kW (clavier vendu séparément)
Description du produit
The Davey Spa Power SP601 Pack (2kW) is a compact and efficient spa control system, ideal for small to medium-sized spas. It supports flexible configurations, including single or dual-speed pumps, an air blower, ozone, and lighting. The system operates on 230VAC at 50Hz and features a 2kW heater for effective temperature management. With standard 2-inch socket heater union sleeves and AMP cable connections, it integrates seamlessly into spa setups.
Specifications:
- Voltage: 230VAC
- Frequency: 50Hz
- Pump Support:
- Pump 1: Single or dual-speed pump, with an optional circulation pump
- Pump 2: Single-speed (only if Pump 1 is single-speed with a circulation pump)
- Additional Outputs:
- Air Blower: Single or variable speed
- Heater: 2kW
- Ozone: 1 connection
- Light: 1 unit, 12V
- Connections:
- 2-inch socket heater union sleeves
- AMP cables plug onto the PCB to operate components
Dimensions:
- Control Box:
- Length: 360 mm (14.17 inches)
- Width: 95 mm (3.74 inches)
- Height: 220 mm (8.66 inches)
Compatible With:
- Designed for small to medium-sized spas
Box Quantity: Sold individually.
Attributs du produit
| Type de produit : Boîtier de commande |
| Marque : Davey |
| Pompes Max : 2 |
| Puissance kW : 2.0kW |
| Circ Pump : Oui |
| Souffleur : Oui |
| Relais informatiques totaux : 4 |
| Référence de taille : 2 pouces |
Attributs du produit
| Type de produit : Boîtier de commande |
| Marque : Davey |
| Pompes Max : 2 |
| Puissance kW : 2.0kW |
| Circ Pump : Oui |
| Souffleur : Oui |
| Relais informatiques totaux : 4 |
| Référence de taille : 2 pouces |
