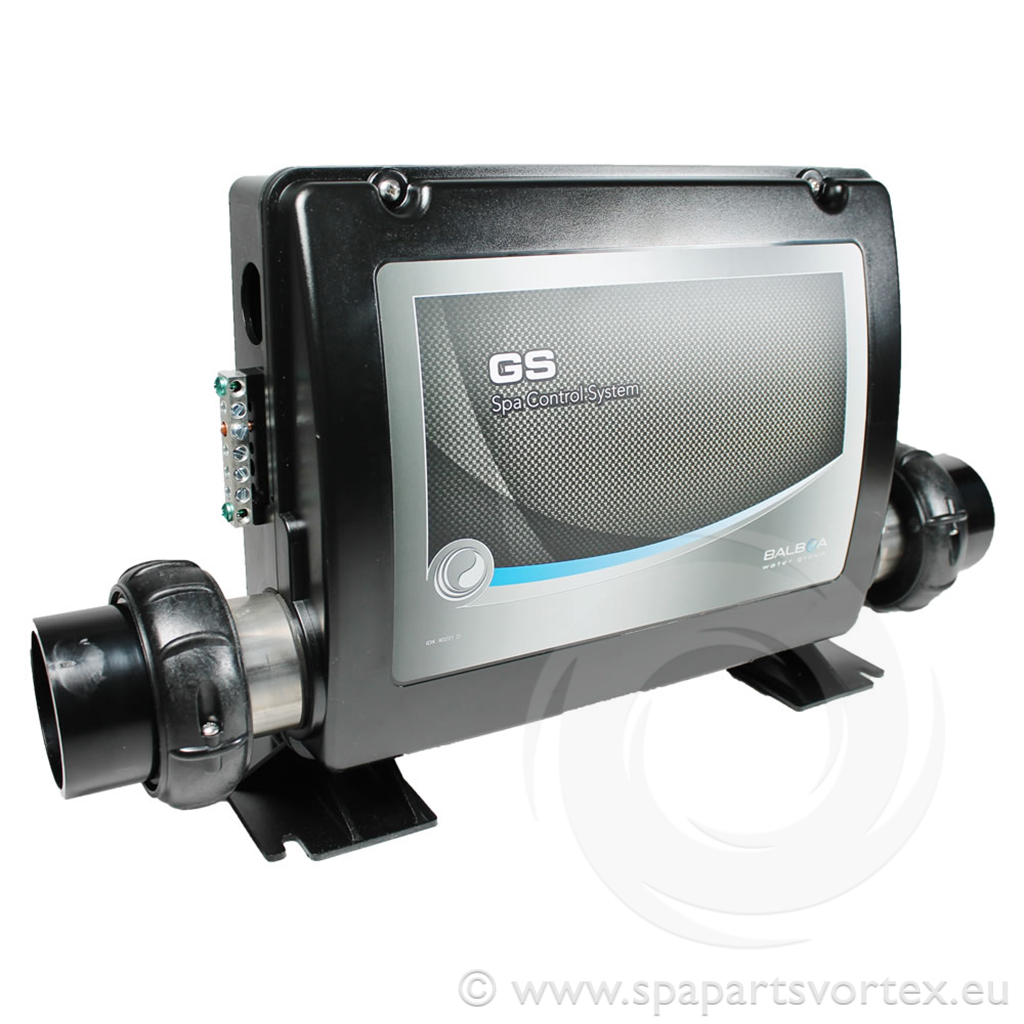

(Boitier 2.2) Boitier de contrôle Balboa GS500Z 3kW (Remplacé par BX-GZ501)
Description du produit
Box Quantity: 5. Dimensions: Overall length complete: 375 mm Main Plastic Unit Length: 190 mm Width: 60 mm Height: 137 mm Heater Length: 260 mm Diameter: 50mm / 1.5 inches Between Terminals: 30 mm
Volts: 230vac Hz: 50 Amps: 16A
Pump 1: Dual speed pump 1
Pump 2: N/A
Air Blower: N/A
Heater: x 1 (2kW), Heater is a separate unit which plugs into the board. Included in the box as pictured.
Ozone: x 1 (230vac)
Light: x1, 12 volt
TV/AV: N/A
Works with any Mini or Duplex panel such as VL200,240,260 or VL401,402,403,404. This system is ideal for small roto mould spas with tight spaces to work in and small spa system upgrades.
New plastic style
This is a very useful entry level system. It has a small, easy to mount, easy to set control box and a separate remote heater.
This unit allows you to program timeout functions for both speeds of the pump via 2 dip switches.
This is a generic unlicensed control box. This unit must be fitted by a competent individual or tradesman. Incorrect installation could invalidate the warranty.
Attributs du produit
| Marque: Balboa |
| Type de produit: Boîtier de commande |
| Longueur Max: 420mm |
| Hauteur Max: 270mm |
| Pompes Max: 1 |
| Puissance kW: 3.0kW |
| Circ Pump: Oui |
| Souffleur: Non |
| Profondeur Max: 100mm |
| Relais informatiques totaux: 2 |
| Dimension du chauffage: 2 pouces |
