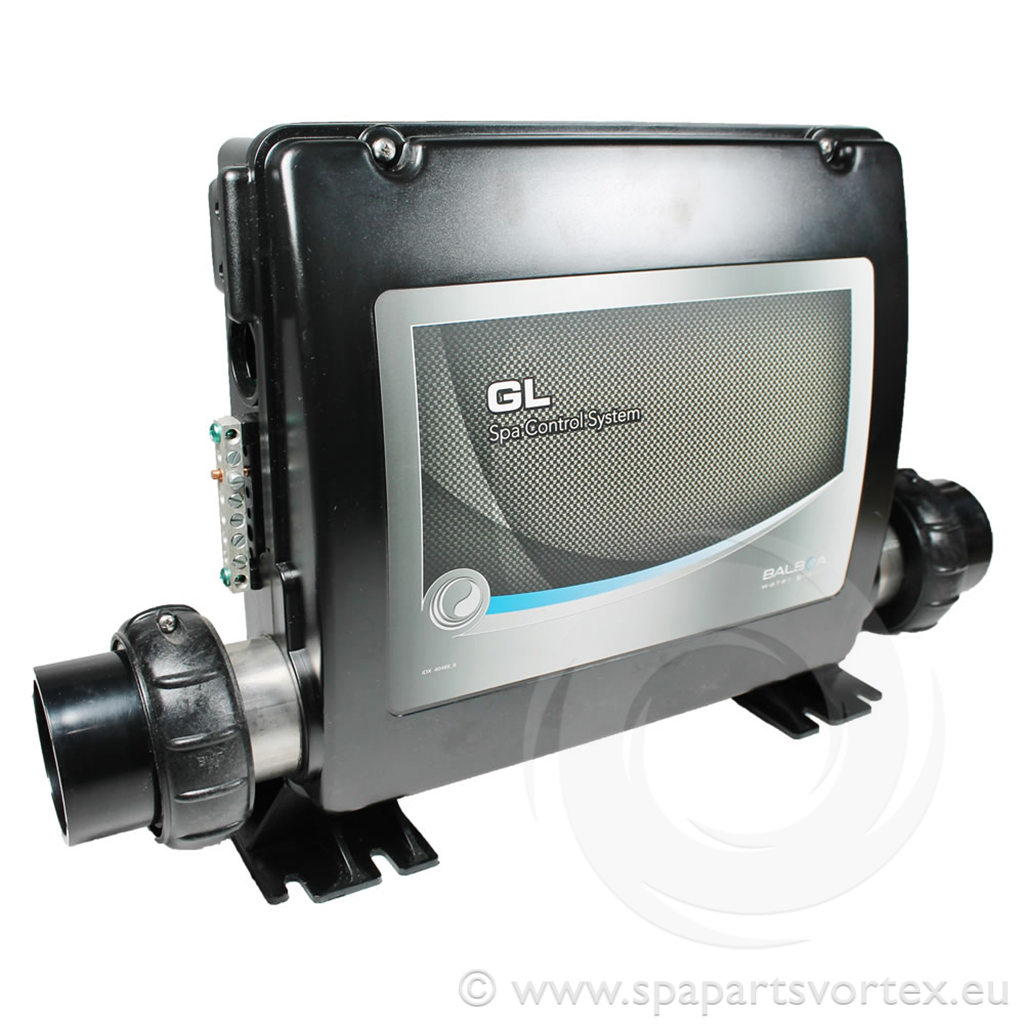

(Boitier 6) Boitier de contrôle Balboa GL2000 mach 3
Description du produit
Box Quantity: 5. Dimensions: Length: 500 mm (inc heater) 330 mm (box casing only) Width: 120 mm Height: 300 mm
Volts: 230vac Hz: 50
Pump 1: Single or dual speed pump + circulation pump if required.
Pump 2: Single or dual speed (if no blower used)
Pump 3 or Air Blower: x 1 (if pump 2 is single speed)
Heater: x 1 (3KW)
Ozone: x 1
Light: x1, 12 volt or 230 volt (as required)
TV/AV: Point available
Compatible With: Systems fitted with topside controls from the advanced ML range such as the ML700 and ML900, also suitable for upgrades.Hot Tubs: Hydrospa Essence PCB SN HSEX2000 54234
Connections: 2-inch socket heater union sleeves. Amp cables plug into the PCB to operate the components.
The M7 technology means you do not need to have sensors and flow switches going back into the tub as everything is done inside the control box by 2 sensors.
With the addition of an expander board you can add an additional 1-speed pump or an additional blower.This control box is very versatile and enables you to run multiple topside controls and auxiliary buttons.
This is a generic unlicensed control box. This unit must be fitted by a competent individual or tradesman. Incorrect installation could invalidate the warranty.
Volts: 230vac Hz: 50
Pump 1: Single or dual speed pump + circulation pump if required.
Pump 2: Single or dual speed (if no blower used)
Pump 3 or Air Blower: x 1 (if pump 2 is single speed)
Heater: x 1 (3KW)
Ozone: x 1
Light: x1, 12 volt or 230 volt (as required)
TV/AV: Point available
Compatible With: Systems fitted with topside controls from the advanced ML range such as the ML700 and ML900, also suitable for upgrades.Hot Tubs: Hydrospa Essence PCB SN HSEX2000 54234
Connections: 2-inch socket heater union sleeves. Amp cables plug into the PCB to operate the components.
The M7 technology means you do not need to have sensors and flow switches going back into the tub as everything is done inside the control box by 2 sensors.
With the addition of an expander board you can add an additional 1-speed pump or an additional blower.This control box is very versatile and enables you to run multiple topside controls and auxiliary buttons.
This is a generic unlicensed control box. This unit must be fitted by a competent individual or tradesman. Incorrect installation could invalidate the warranty.
Attributs du produit
| Marque: Balboa |
| Type de produit: Boîtier de commande |
| Longueur Max: 490mm |
| Hauteur Max: 300mm |
| Pompes Max: 2 |
| Puissance kW: 3.0kW |
| Circ Pump: Oui |
| Souffleur: Oui |
| Profondeur Max: 100mm |
| Relais informatiques totaux: 4 |
| Dimension du chauffage: 2 pouces |
Attributs du produit
| Marque: Balboa |
| Type de produit: Boîtier de commande |
| Longueur Max: 490mm |
| Hauteur Max: 300mm |
| Pompes Max: 2 |
| Puissance kW: 3.0kW |
| Circ Pump: Oui |
| Souffleur: Oui |
| Profondeur Max: 100mm |
| Relais informatiques totaux: 4 |
| Dimension du chauffage: 2 pouces |
