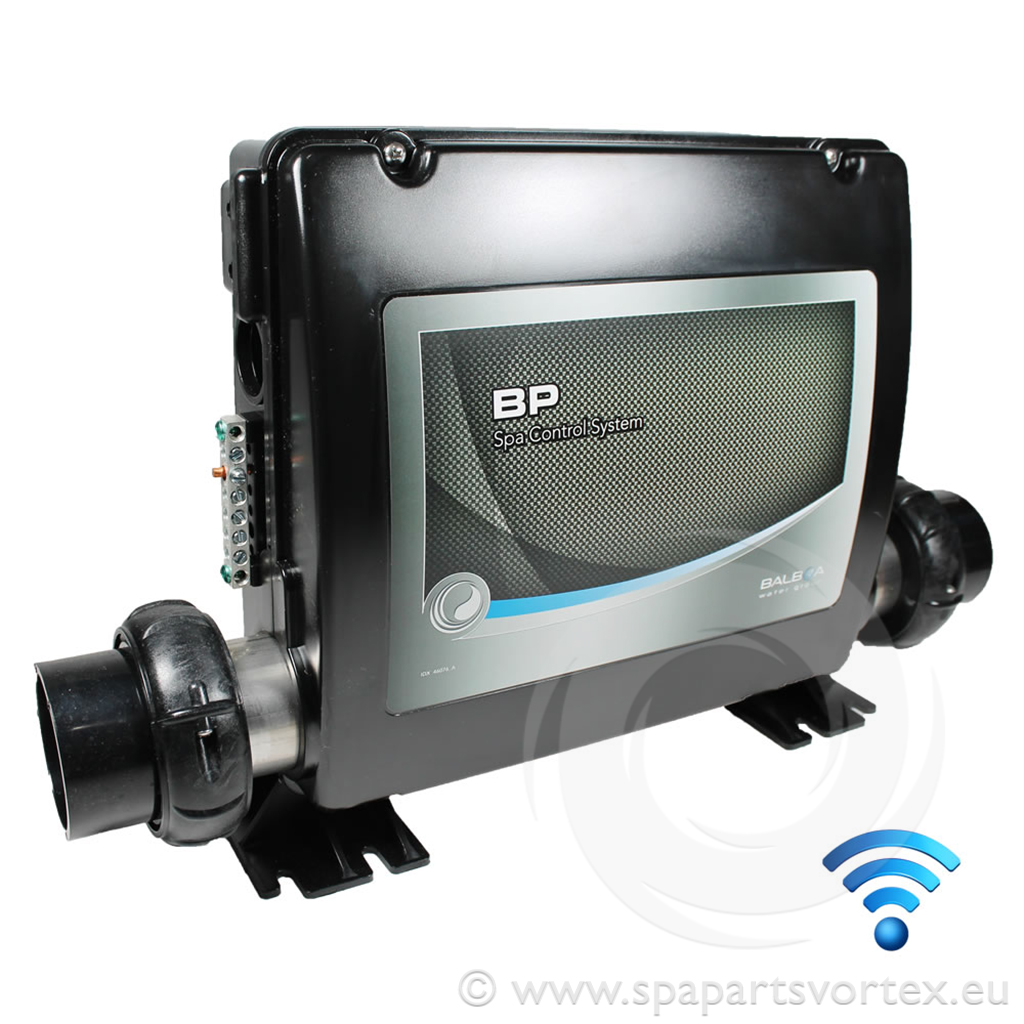

(Boitier 8.1) Boitier de contrôle Balboa BP2100 prêt pour le WiFi
Description du produit
Box Quantity: 5, Dimensions: Length: 500 mm (inc heater) 330 mm (box casing only) Width: 120 mm Height: 300 mm
Volts: 230vac Hz: 50.
Circ. Pump: Yes
Pump 1: Yes
Pump 2: Yes
Air Blower: Yes
Heater: 3kW
Ozone: x 1 Light: x1, 10v
TV/AV: Point available
Feature: Designed for use with WiFi receiver for iPhone operation.
1,2 and 3 phase connections
Compatible With: Balboa TP Series Topside panels such as TP400, TP600, TP800 and TP900
Connections: 2-inch socket heater union sleeves. Amp cables plug into the PCB to operate the components.
The M7 technology means you do not need to have sensors and flow switches going back into the tub as everything is done inside the control box by 2 sensors.
With the addition of the new WiFi receiver, the BP2100 can be operated via Android®, iPhone®, iPod touch® or iPad®
This is a generic unlicensed control box. This unit must be fitted by a competent individual or tradesman. Incorrect installation could invalidate the warranty.
Volts: 230vac Hz: 50.
Circ. Pump: Yes
Pump 1: Yes
Pump 2: Yes
Air Blower: Yes
Heater: 3kW
Ozone: x 1 Light: x1, 10v
TV/AV: Point available
Feature: Designed for use with WiFi receiver for iPhone operation.
1,2 and 3 phase connections
Compatible With: Balboa TP Series Topside panels such as TP400, TP600, TP800 and TP900
Connections: 2-inch socket heater union sleeves. Amp cables plug into the PCB to operate the components.
The M7 technology means you do not need to have sensors and flow switches going back into the tub as everything is done inside the control box by 2 sensors.
With the addition of the new WiFi receiver, the BP2100 can be operated via Android®, iPhone®, iPod touch® or iPad®
This is a generic unlicensed control box. This unit must be fitted by a competent individual or tradesman. Incorrect installation could invalidate the warranty.
Attributs du produit
Marque: Balboa |
Type de produit: Boîtier de commande |
Longueur Max: 490mm |
Hauteur Max: 295mm |
Pompes Max: 2 |
Puissance kW: 3.0kW |
Circ Pump: Oui |
Souffleur: Oui |
Profondeur Max: 110mm |
Relais informatiques totaux: 4 |
Dimension du chauffage: 2 pouces |
Attributs du produit
Marque: Balboa |
Type de produit: Boîtier de commande |
Longueur Max: 490mm |
Hauteur Max: 295mm |
Pompes Max: 2 |
Puissance kW: 3.0kW |
Circ Pump: Oui |
Souffleur: Oui |
Profondeur Max: 110mm |
Relais informatiques totaux: 4 |
Dimension du chauffage: 2 pouces |
