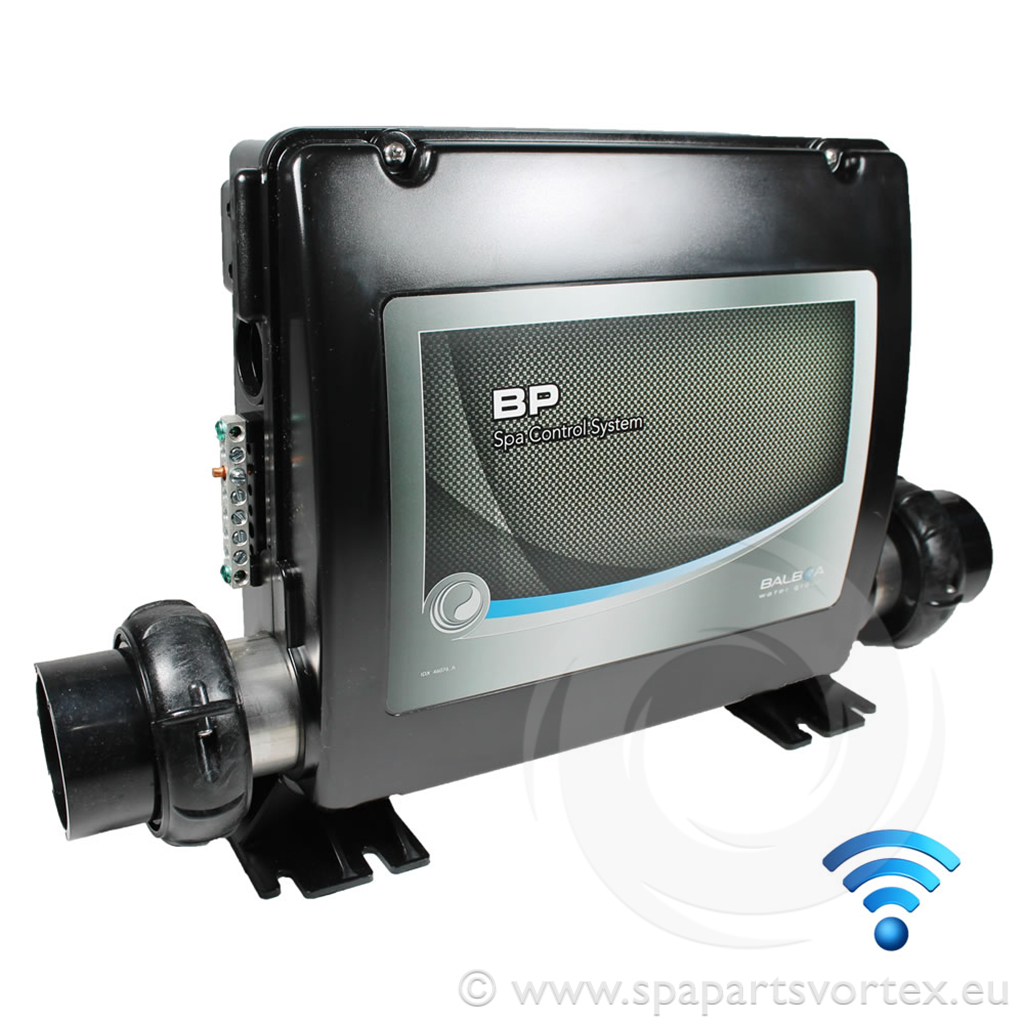

(Boitier 8.1) Boitier de contrôle Balboa BP2100 prêt pour le WiFi
Description du produit
The Balboa BP2100 Control Box with a 3kW heater is a powerful and versatile solution for advanced spa systems. It supports multiple pumps, an air blower, and ozone, while incorporating M7 Technology for internal sensor management, eliminating the need for external flow switches. WiFi-ready functionality allows remote operation via Android®, iPhone®, iPod touch®, or iPad®. The system is compatible with Balboa TP Series topside panels and offers connection points for TV, AV, and lighting components. A splitter cable is required when using three pumps and a blower.
Specifications:
- Pump Support:
- Pump 1: Single or dual-speed, with an optional circulation pump
- Pump 2: Single or dual-speed
- Pump 3: Single-speed (or dual-speed if no blower is used)
- Air Blower: 1 unit supported
- Heater: 3kW
- Ozone: 1 unit supported
- Light: 1 unit, 10V @ 1A Max
- TV/AV: Connection point available
- Connections:
- 2-inch socket heater union sleeves
- AMP cables plug into the PCB for component operation
- Supports 1, 2, and 3 phase connections
Compatibility:
- Balboa TP Series Topside panels, including TP400, TP600, TP800, and TP900
Box Quantity: Sold in multiples of 5 units.
Attributs du produit
| Type de produit : Boîtier de commande |
| Marque : Balboa |
| Longueur Max : 490mm |
| Hauteur Max : 295mm |
| Pompes Max : 3 |
| Puissance kW : 3.0kW |
| Circ Pump : Oui |
| Souffleur : Oui |
| Profondeur Max : 110mm |
| Relais informatiques totaux : 5 |
| Référence de taille : 2 pouces |
Attributs du produit
| Type de produit : Boîtier de commande |
| Marque : Balboa |
| Longueur Max : 490mm |
| Hauteur Max : 295mm |
| Pompes Max : 3 |
| Puissance kW : 3.0kW |
| Circ Pump : Oui |
| Souffleur : Oui |
| Profondeur Max : 110mm |
| Relais informatiques totaux : 5 |
| Référence de taille : 2 pouces |
Description du produit
The Balboa BP2100 Control Box with a 3kW heater is a powerful and versatile solution for advanced spa systems. It supports multiple pumps, an air blower, and ozone, while incorporating M7 Technology for internal sensor management, eliminating the need for external flow switches. WiFi-ready functionality allows remote operation via Android®, iPhone®, iPod touch®, or iPad®. The system is compatible with Balboa TP Series topside panels and offers connection points for TV, AV, and lighting components. A splitter cable is required when using three pumps and a blower.
Specifications:
- Pump Support:
- Pump 1: Single or dual-speed, with an optional circulation pump
- Pump 2: Single or dual-speed
- Pump 3: Single-speed (or dual-speed if no blower is used)
- Air Blower: 1 unit supported
- Heater: 3kW
- Ozone: 1 unit supported
- Light: 1 unit, 10V @ 1A Max
- TV/AV: Connection point available
- Connections:
- 2-inch socket heater union sleeves
- AMP cables plug into the PCB for component operation
- Supports 1, 2, and 3 phase connections
Compatibility:
- Balboa TP Series Topside panels, including TP400, TP600, TP800, and TP900
Box Quantity: Sold in multiples of 5 units.
