Interrupteur d'air TBS106A - alt, SPNO 16amp
Description du produit

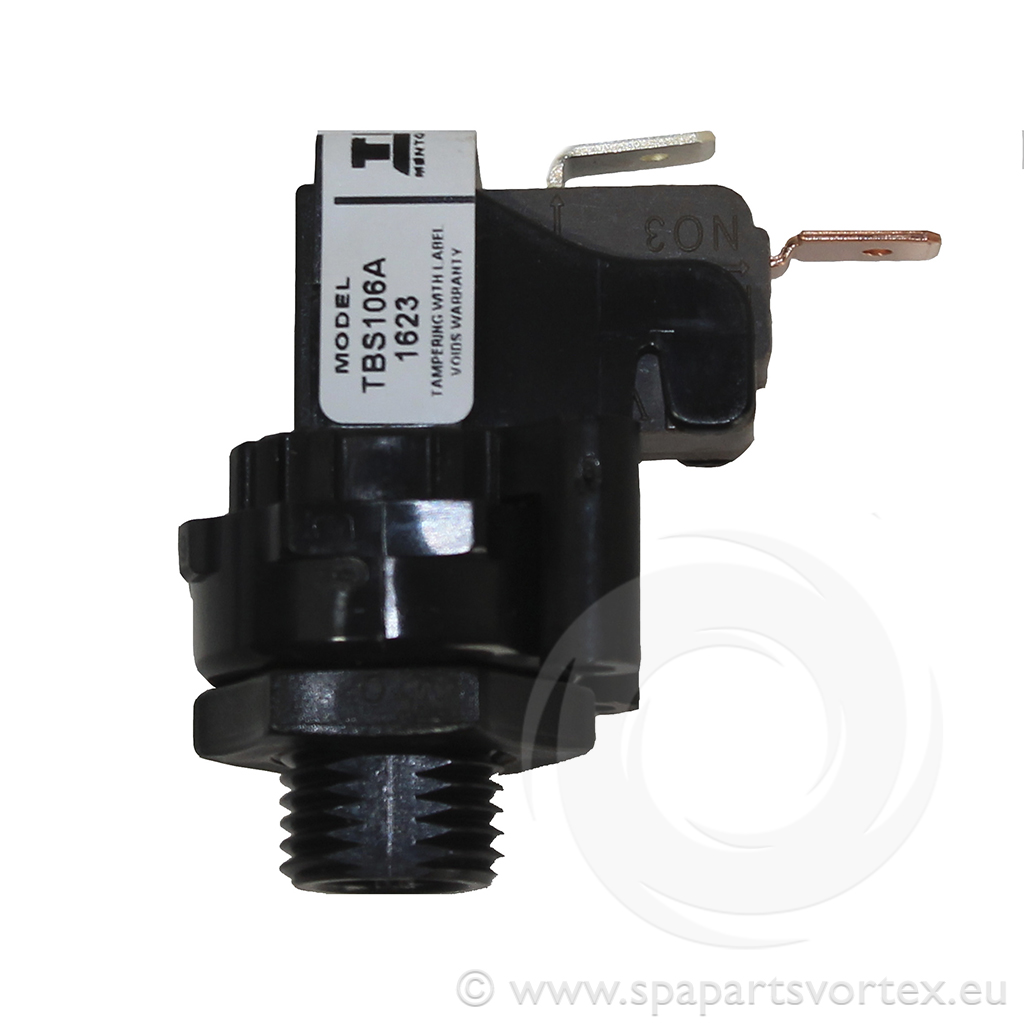

Air Switch / Pneumatic Switch- Manufactured by Techmark TBS106A - Single Pole, Single Throw...
This means this is a simple line conductor with a simple on/off configuration. 2 flat spade conductors are used to connect the circuit. This switch is an alternate action meaning it will hold in the on position and then hold in the off position when activated. Height: 48mm, Width: 25mm (at widest point) Depth: 48mm (from front to rear spade)
Up to 250vac. 16A resistive (meaning use with a heater for example), 4A inductive - use with a 1HP pump for example. Fits hole size: 15mm
This is the most common type of air switch found in circulation. Basic operation is to switch either directly an appliance or a relay.
This means this is a simple line conductor with a simple on/off configuration. 2 flat spade conductors are used to connect the circuit. This switch is an alternate action meaning it will hold in the on position and then hold in the off position when activated. Height: 48mm, Width: 25mm (at widest point) Depth: 48mm (from front to rear spade)
Up to 250vac. 16A resistive (meaning use with a heater for example), 4A inductive - use with a 1HP pump for example. Fits hole size: 15mm
This is the most common type of air switch found in circulation. Basic operation is to switch either directly an appliance or a relay.
Attributs du produit
| Marque: Tecmark |
| Type de produit: Interrupteur d’air |
| Fonction: SPNO |
Attributs du produit
| Marque: Tecmark |
| Type de produit: Interrupteur d’air |
| Fonction: SPNO |
Description du produit
Air Switch / Pneumatic Switch- Manufactured by Techmark TBS106A - Single Pole, Single Throw...
This means this is a simple line conductor with a simple on/off configuration. 2 flat spade conductors are used to connect the circuit. This switch is an alternate action meaning it will hold in the on position and then hold in the off position when activated. Height: 48mm, Width: 25mm (at widest point) Depth: 48mm (from front to rear spade)
Up to 250vac. 16A resistive (meaning use with a heater for example), 4A inductive - use with a 1HP pump for example. Fits hole size: 15mm
This is the most common type of air switch found in circulation. Basic operation is to switch either directly an appliance or a relay.
This means this is a simple line conductor with a simple on/off configuration. 2 flat spade conductors are used to connect the circuit. This switch is an alternate action meaning it will hold in the on position and then hold in the off position when activated. Height: 48mm, Width: 25mm (at widest point) Depth: 48mm (from front to rear spade)
Up to 250vac. 16A resistive (meaning use with a heater for example), 4A inductive - use with a 1HP pump for example. Fits hole size: 15mm
This is the most common type of air switch found in circulation. Basic operation is to switch either directly an appliance or a relay.
