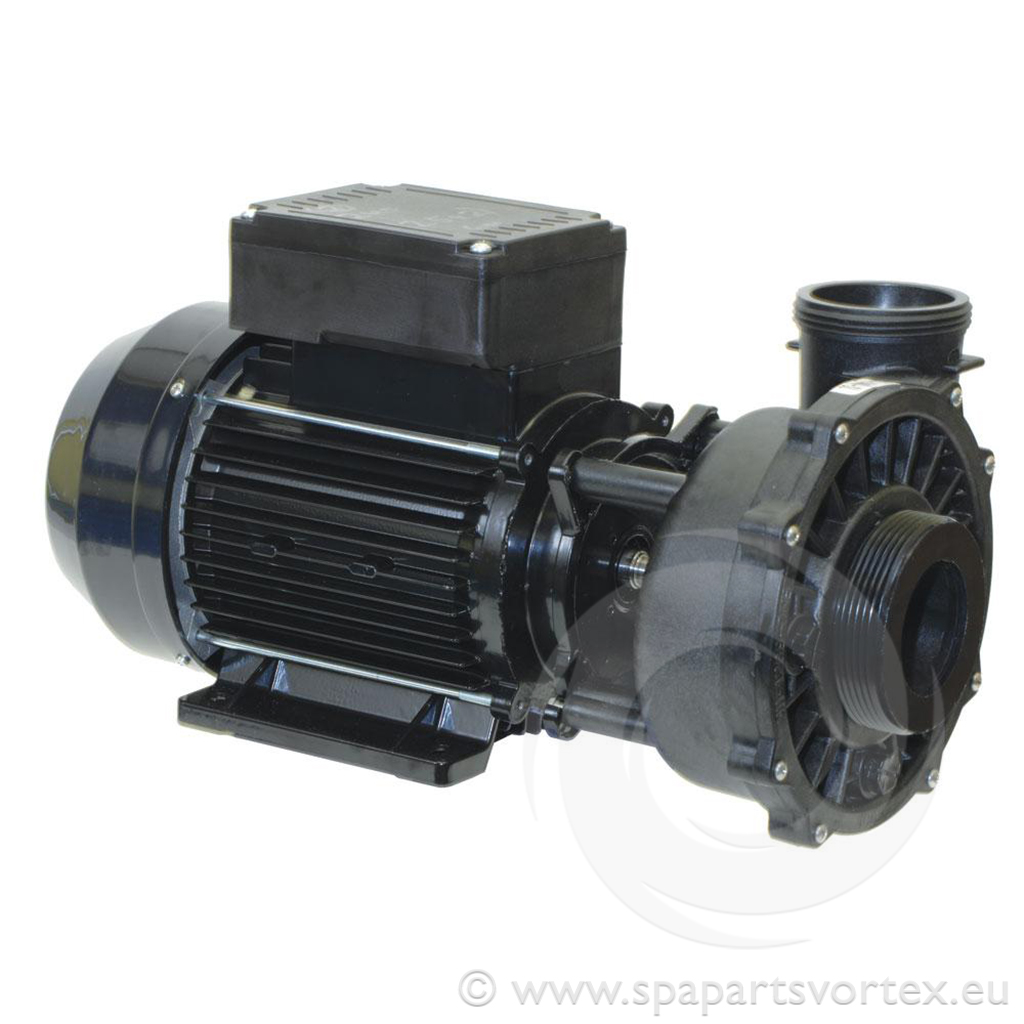

Waterway 1 speed 2.0HP 56 frame (2.5 x2)

https://spaparts.glodo.cloud/web/image/product.template/1738/image_1920?unique=43d906f

Not Available For Sale

  • Brand
  • Product Type
  • Speeds
  • Plumbing Connection
  • HP
  • Length
  • Width
  • Power kW
  • Height

This combination does not exist.

  • VISA
  • Mastercard
  • Paypal
  • Google Pay
  • Apple Pay
Product Description


Dimensions: Length: 430 mm Height: 220 mm Depth: 200 mm

Common Power Reference: 2 HP single speed. Power: Volts: 230 Hz: 50 Motor HP Low / High: 2 Amps Low / High Speed: 9.5 RPM Low / High: 2800 Wet End Impellor HP: 4 Capacitor: 30 uf. Plumbing Connection: 2 x 2.5 inch Waterway unions. Electrical Connections: No wire with pump, you will need to use your existing wire. Unions to be purchased separately.

Commonly Used With: Hot Tubs Direct, Knightswood Leisure, Touch Spas, Catalina, Hydropool, Hotspring, Hotspot, Southwest Spas and many more. This pump can be found in many different Hot Tubs in various forms. It has 2-inch outlets and will work in place of either Waterway, Vico, Sta-Rite, GE, Emerson, A.O Smith, ITTor Aqua-flo and in most cases the unions will wind straight on. This pump is used for the boost jets operation.

Product Attributes
Brand: Waterway
Product Type: Massage Pump
Speeds: 1 speed
Plumbing Connection: 2" x 2.5 "
HP: 2.0 HP
Length: 430 mm
Width: 200 mm
Power kW: 1.5 kW
Height: 240 mm
Product Attributes
Brand: Waterway
Product Type: Massage Pump
Speeds: 1 speed
Plumbing Connection: 2" x 2.5 "
HP: 2.0 HP
Length: 430 mm
Width: 200 mm
Power kW: 1.5 kW
Height: 240 mm
Product Description


Dimensions: Length: 430 mm Height: 220 mm Depth: 200 mm

Common Power Reference: 2 HP single speed. Power: Volts: 230 Hz: 50 Motor HP Low / High: 2 Amps Low / High Speed: 9.5 RPM Low / High: 2800 Wet End Impellor HP: 4 Capacitor: 30 uf. Plumbing Connection: 2 x 2.5 inch Waterway unions. Electrical Connections: No wire with pump, you will need to use your existing wire. Unions to be purchased separately.

Commonly Used With: Hot Tubs Direct, Knightswood Leisure, Touch Spas, Catalina, Hydropool, Hotspring, Hotspot, Southwest Spas and many more. This pump can be found in many different Hot Tubs in various forms. It has 2-inch outlets and will work in place of either Waterway, Vico, Sta-Rite, GE, Emerson, A.O Smith, ITTor Aqua-flo and in most cases the unions will wind straight on. This pump is used for the boost jets operation.
