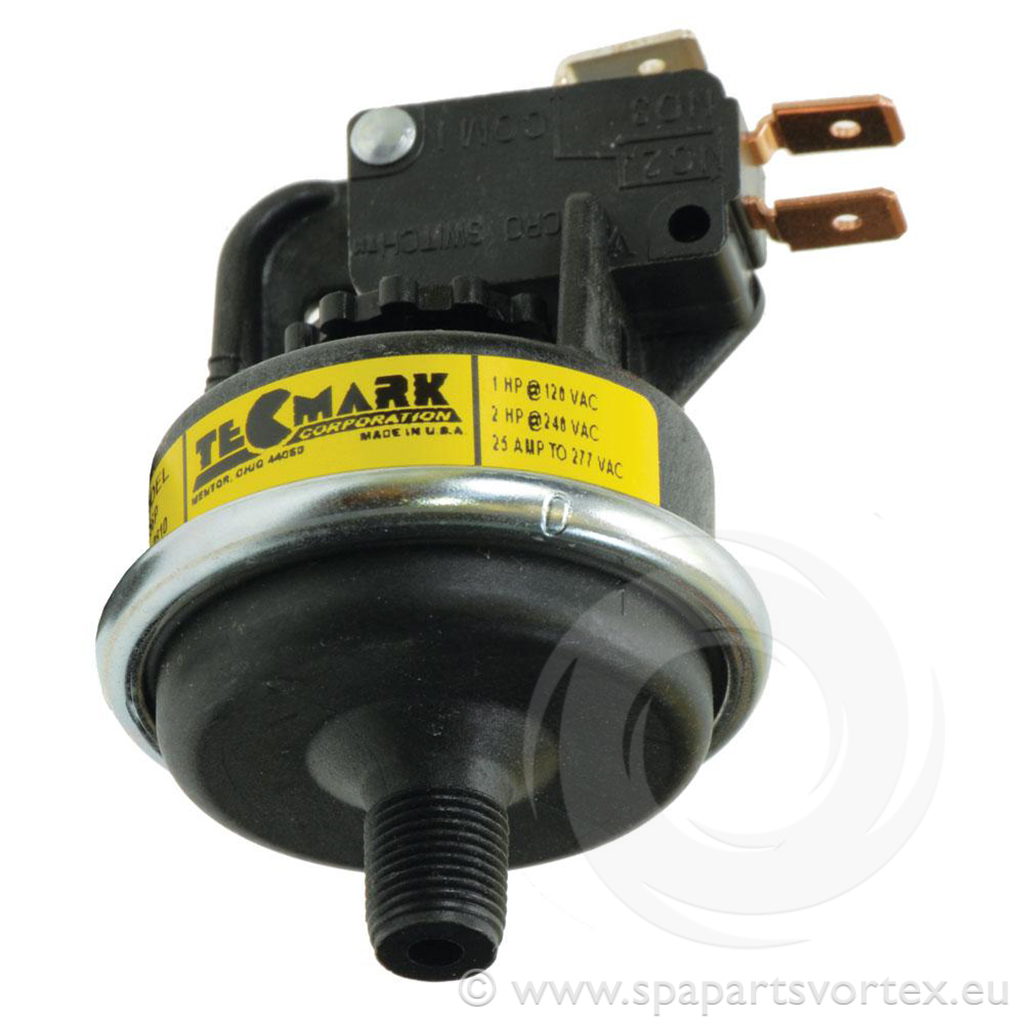

Tecmark Pressure Switch 4760P
Product Description
Pressure switch - Manufactured by Tecmark 4760P / SPDT meaning instead of a simple on / off config. you can use the extra connection point to toggle a dual speed application or control a heat indicator light for example. 1/8 inch MPT screw thread to attach to heater tube. Switching mechanism at top has 2 x flat spade connectors to attach the contact wire. Also uses 3rd contact as explained above. Height: 70 mm Diameter: 50 mm Outer Diameter of threaded connection: 9 mm
Up to 250vac. 16A resistive (meaning use with a heater for example), 4A inductive (meaning use with a 1HP pump for example). 1-6 PSI
After a few years the wheel can become stiff to turn and you may find that you have to keep re-setting the switch, this is usually a good indication that the unit needs replacing.
Up to 250vac. 16A resistive (meaning use with a heater for example), 4A inductive (meaning use with a 1HP pump for example). 1-6 PSI
After a few years the wheel can become stiff to turn and you may find that you have to keep re-setting the switch, this is usually a good indication that the unit needs replacing.
Product Attributes
| Brand: Tecmark |
| Product Type: Pressure Switch |
Product Attributes
| Brand: Tecmark |
| Product Type: Pressure Switch |
Product Description
Pressure switch - Manufactured by Tecmark 4760P / SPDT meaning instead of a simple on / off config. you can use the extra connection point to toggle a dual speed application or control a heat indicator light for example. 1/8 inch MPT screw thread to attach to heater tube. Switching mechanism at top has 2 x flat spade connectors to attach the contact wire. Also uses 3rd contact as explained above. Height: 70 mm Diameter: 50 mm Outer Diameter of threaded connection: 9 mm
Up to 250vac. 16A resistive (meaning use with a heater for example), 4A inductive (meaning use with a 1HP pump for example). 1-6 PSI
After a few years the wheel can become stiff to turn and you may find that you have to keep re-setting the switch, this is usually a good indication that the unit needs replacing.
Up to 250vac. 16A resistive (meaning use with a heater for example), 4A inductive (meaning use with a 1HP pump for example). 1-6 PSI
After a few years the wheel can become stiff to turn and you may find that you have to keep re-setting the switch, this is usually a good indication that the unit needs replacing.
