Vian Power Retrofit Kit

https://spaparts.glodo.cloud/web/image/product.template/1504/image_1920?unique=217d632

Not Available For Sale

  • Brand
  • Product Type
  • Power kW
  • Circ Pump
  • Blower
  • Max Length
  • Max Height
  • Max Depth
  • Max Pumps
  • Plumbing Size

This combination does not exist.

Contact Us
  • VISA
  • Mastercard
  • Paypal
  • Google Pay
  • Apple Pay
Product Description

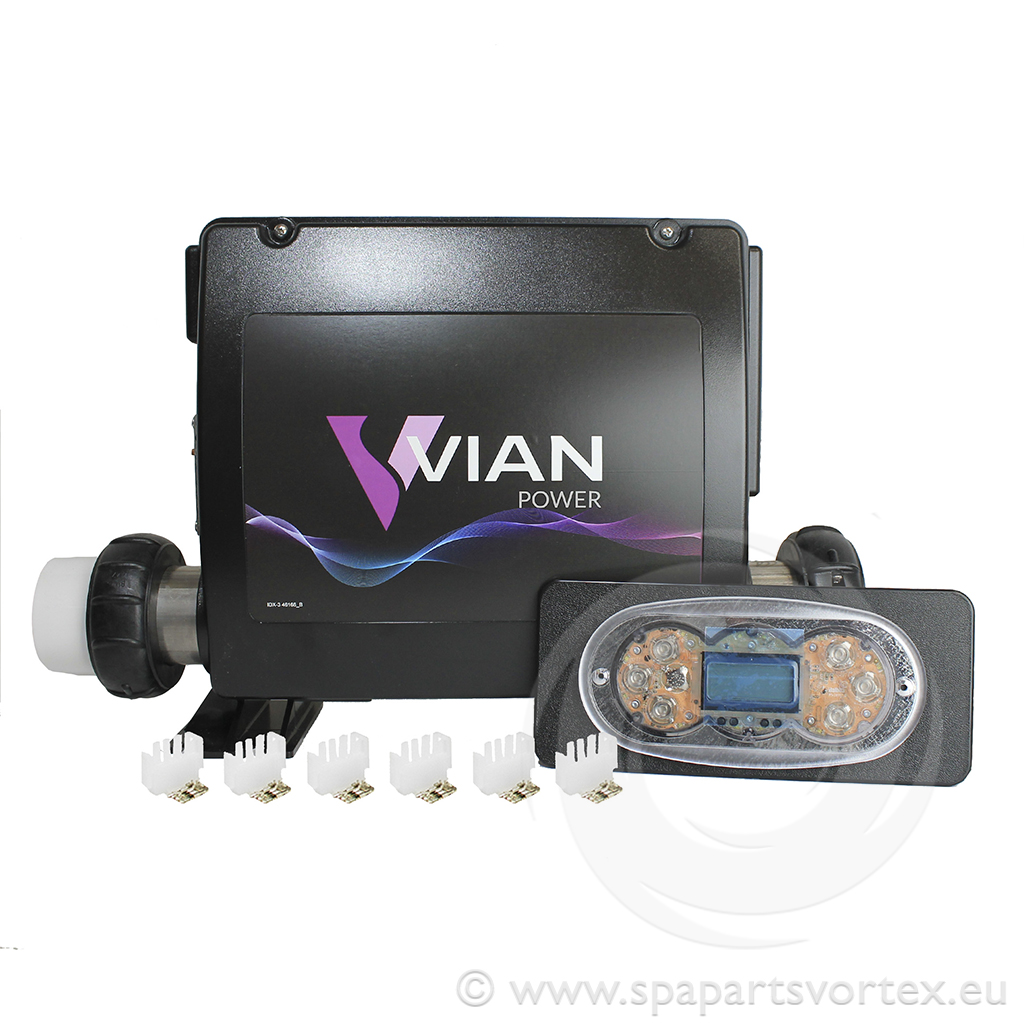

Vian Power Retrofit Kit is designed for upgrading spa control systems, supporting configurations with up to three pumps, a circulation pump, and an air blower. It is compatible with setups requiring a 3.0 kW heater and includes a control box compatible for Balboa heat pumps (CZm8), TP600 touch panel without overlay (so you can choose the one you want), 6 AMP connectors with pins, a 2 pin AMP connector for the light, and a bezel to help you fit the touch panel.

Specifications:

  • Power Supply: 230 VAC, 50 Hz
  • Heater Output: 3.0 kW
  • Pump Support:
    • Up to 3 pumps (single or two-speed)
    • Circulation pump
    • Air blower
  • Connections:
    • Fits 2" Plumbing
    • 2-inch socket heater union sleeves
    • AMP cables interface with PCB
  • Dimensions:
    • Control Box: 500 mm (L, including heater) x 120 mm (W) x 300 mm (H)
    • Topside Control Panel: 178 mm x 86 mm (overlays not included)

Includes:

  • Vian Power Control Box 3Kw 825 CZm8
  • 6 x AMP connector 4 pins (with pins)
  • 1 x AMP connector 2 pins (with pins)
  • 1 x Bezel,
  • 1 x TP600 Touch Panel

Box Quantity: Sold Individually

Product Attributes
Brand : VIAN
Product Type : Control Sytem Bundle
Power kW : 3.0kW
Circ Pump : Yes
Blower : Yes
Max Length : 490mm
Max Height : 295mm
Max Depth : 110mm
Max Pumps : 3
Plumbing Size : 2"
Product Attributes
Brand : VIAN
Product Type : Control Sytem Bundle
Power kW : 3.0kW
Circ Pump : Yes
Blower : Yes
Max Length : 490mm
Max Height : 295mm
Max Depth : 110mm
Max Pumps : 3
Plumbing Size : 2"
Product Description

Vian Power Retrofit Kit is designed for upgrading spa control systems, supporting configurations with up to three pumps, a circulation pump, and an air blower. It is compatible with setups requiring a 3.0 kW heater and includes a control box compatible for Balboa heat pumps (CZm8), TP600 touch panel without overlay (so you can choose the one you want), 6 AMP connectors with pins, a 2 pin AMP connector for the light, and a bezel to help you fit the touch panel.

Specifications:

  • Power Supply: 230 VAC, 50 Hz
  • Heater Output: 3.0 kW
  • Pump Support:
    • Up to 3 pumps (single or two-speed)
    • Circulation pump
    • Air blower
  • Connections:
    • Fits 2" Plumbing
    • 2-inch socket heater union sleeves
    • AMP cables interface with PCB
  • Dimensions:
    • Control Box: 500 mm (L, including heater) x 120 mm (W) x 300 mm (H)
    • Topside Control Panel: 178 mm x 86 mm (overlays not included)

Includes:

  • Vian Power Control Box 3Kw 825 CZm8
  • 6 x AMP connector 4 pins (with pins)
  • 1 x AMP connector 2 pins (with pins)
  • 1 x Bezel,
  • 1 x TP600 Touch Panel

Box Quantity: Sold Individually
