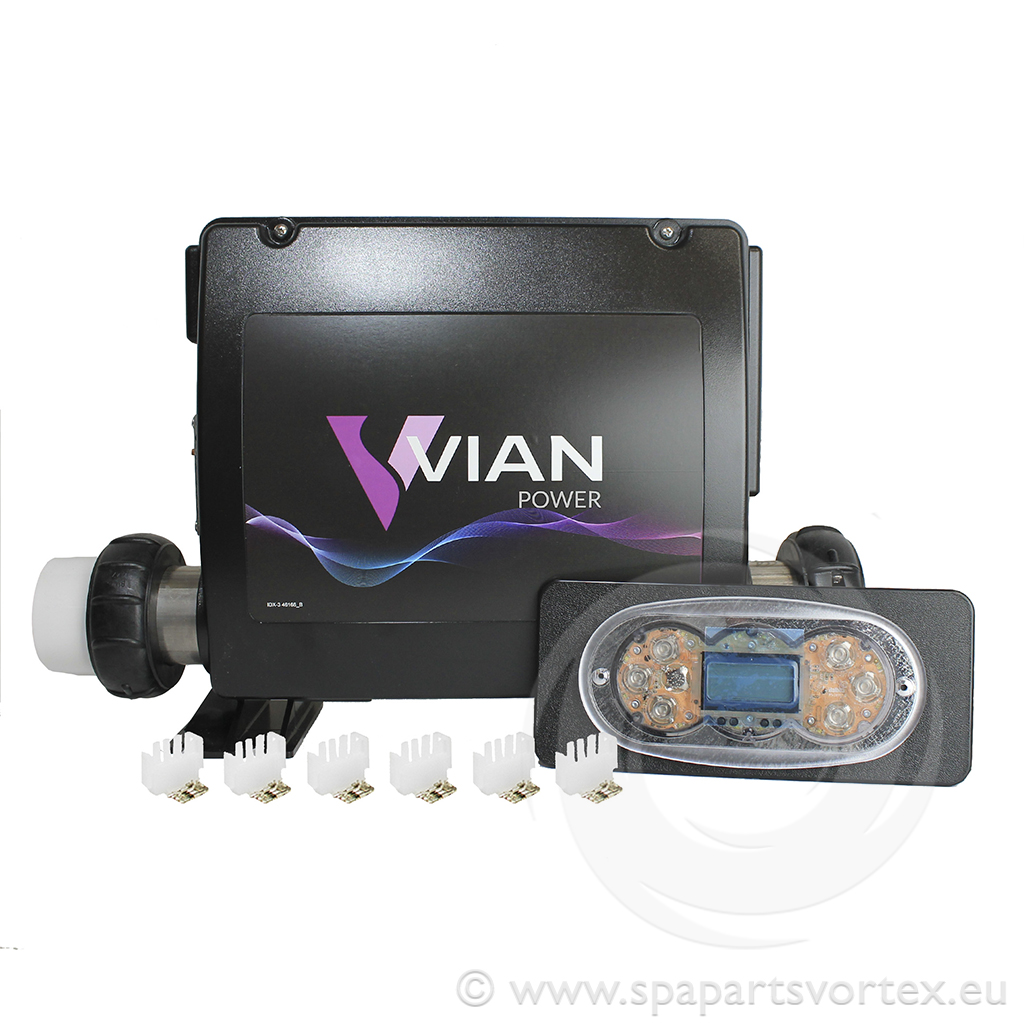

Vian Power Retrofit Kit
Product Description
The Vian Power Retrofit Kit is designed for upgrading spa control systems, supporting configurations with up to three pumps, a circulation pump, and an air blower. It is compatible with setups requiring a 3.0 kW heater and includes AMP cable connections for seamless integration.
Specifications:
- Power Supply: 230 VAC, 50 Hz
- Heater Output: 3.0 kW
- Pump Support:
- Up to 3 pumps (single or two-speed)
- Circulation pump
- Air blower
- Connections:
- 2-inch socket heater union sleeves
- AMP cables interface with PCB
- Dimensions:
- Control Box: 500 mm (L, including heater) x 120 mm (W) x 300 mm (H)
- Topside Control Panel: 178 mm x 86 mm (overlays not included)
Configurable Setups:
- With Circulation Pump: Supports combinations with 1 to 3 pumps and optional blower
- Without Circulation Pump: Supports similar configurations optimised for setups without a circulation pump
Box Quantity:
1 unit per box.
Product Attributes
| Brand: VIAN |
| Product Type: Control Sytem Bundle |
| Power kW: 3.0kW |
| Circ Pump: Yes |
| Blower: Yes |
| Max Length: 490mm |
| Max Height: 295mm |
| Max Depth: 110mm |
| Max Pumps: 3 |
| Total Comp. Relays: 5 |
| Plumbing Size: 2" |
