Balboa GS520DZ + VL801D
Product Description

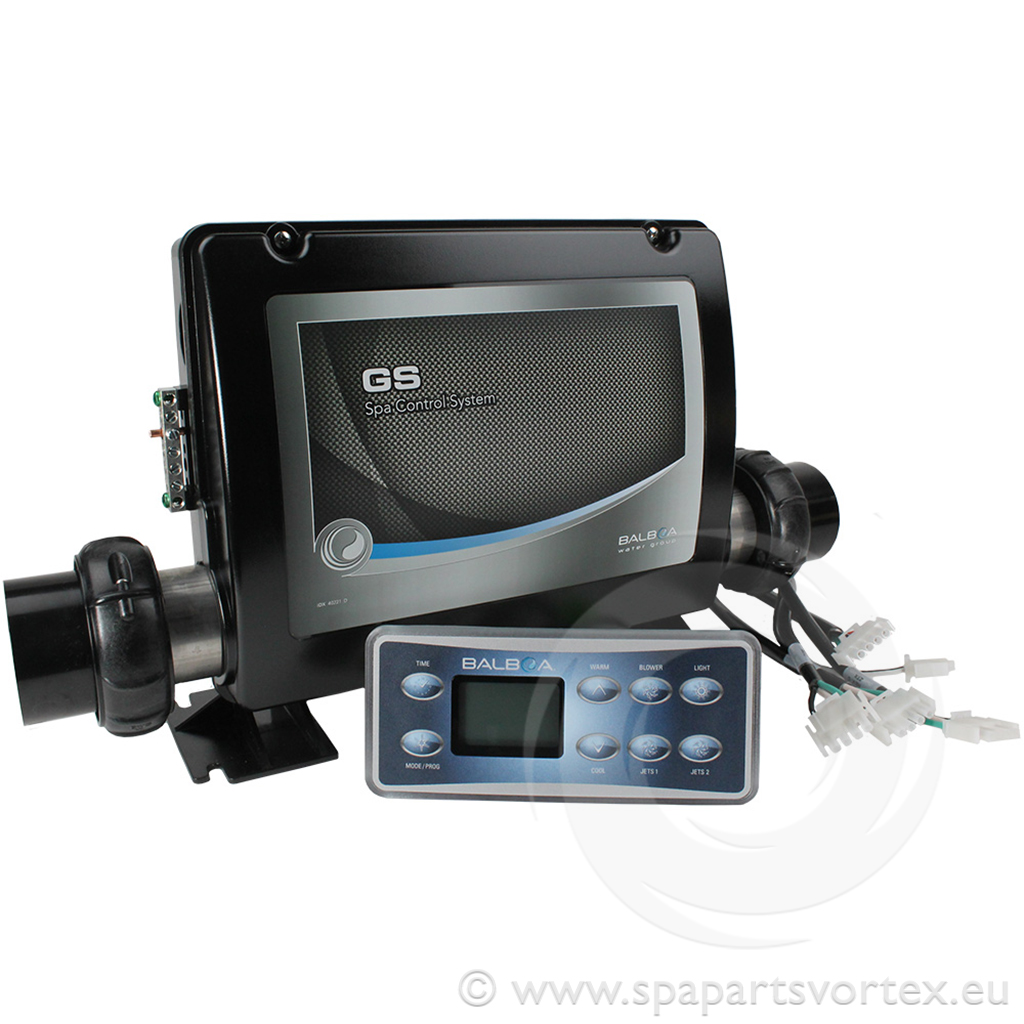

Balboa GS520DZ Control System is a complete control system package that includes the Balboa GS520DZ control box and the Balboa VL801D topside control. Designed for retrofits and upgrades, this system delivers advanced functionality and flexibility.
Specifications:
- Amperage: 16A or 32A
- Pump 1: Single or dual-speed pump, with an optional circulation pump (cable sold separately)
- Pump 2: Single or dual-speed (cable sold separately)
- Air Blower: 1 unit (optional)
- Heater: 3 kW
- Ozone: 1 unit supported
- Light: 1 unit, 12V
- Radio/TV/AV: Connection point available
Dimensions:
- Control Box:
- Length (including heater): 500 mm (19.69 inch)
- Length (box only): 320 mm (12.60 inch)
- Width: 120 mm (4.72 inch)
- Height: 270 mm (10.63 inch)
- Topside Panel:
- Length: 187 mm (7.36 inch)
- Height: 83 mm (3.27 inch)
- Topside Buttons: Warm, Cool, Mode, Jets 1, Jets 2, Blower, and Light
Compatibility:
- Suitable for any retrofit system and upgrades
Items Included:
- Balboa GS520DZ control box
- Balboa VL801D topside control
- Balboa VL801D Overlay
Box Quantity: Sold individually.
Product Attributes
| Product Type : Control Sytem Bundle |
| Brand : Balboa |
| Max Length : 420mm |
| Max Height : 270mm |
| Max Pumps : 2 |
| Power kW : 3.0kW |
| Circ Pump : Yes |
| Blower : Yes |
| Max Depth : 100mm |
| Total Comp. Relays : 4 |
| Plumbing Size : 2" |
