LX JA35 Circulation Pump 0.33HP
Product Description

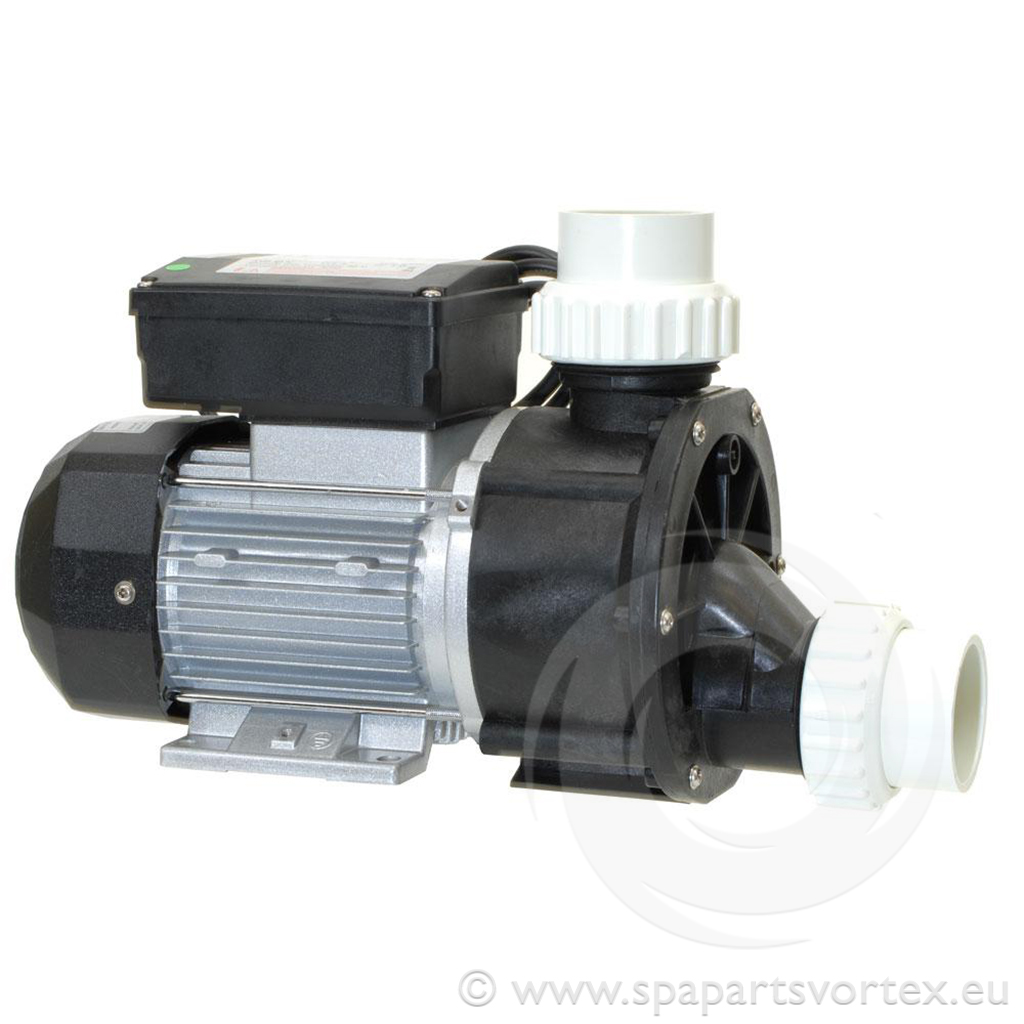

LX JA35 Circulation Pump 0.33 HP
The LX JA35 is a single-speed, 0.33 HP circulation pump designed for hot tubs and whirlpool baths, featuring an optional air switch for manual operation.
Specifications:
- Motor Power: 0.33 HP (0.25 kW)
- Current Draw: 1.6 A
- Rotational Speed: 2,900 RPM
- Plumbing Connections: 1.5-inch suction and discharge ports
Features:
- Design: Centre discharge with self-draining capability
- Construction: Thermally protected motor with a 7 µF capacitor
- Performance: Maximum flow rate of 150 L/min; maximum head of 8 m
- Compatibility: Commonly used in Chinese spas, including AMC Winer Spa and Spa Serve
This pump ensures efficient and reliable operation in spa and whirlpool systems.
Product Attributes
| Brand: LX |
| Product Type: Circulation Pump |
| Plumbing Connection: 1.5" |
| HP: 0.33 HP |
| Length: 325 mm |
| Width: 155 mm |
| Power kW: 0.25 kW |
| Height: 185 mm |
Product Attributes
| Brand: LX |
| Product Type: Circulation Pump |
| Plumbing Connection: 1.5" |
| HP: 0.33 HP |
| Length: 325 mm |
| Width: 155 mm |
| Power kW: 0.25 kW |
| Height: 185 mm |
