LX EA350 with Air Switch (optional)
Product Description

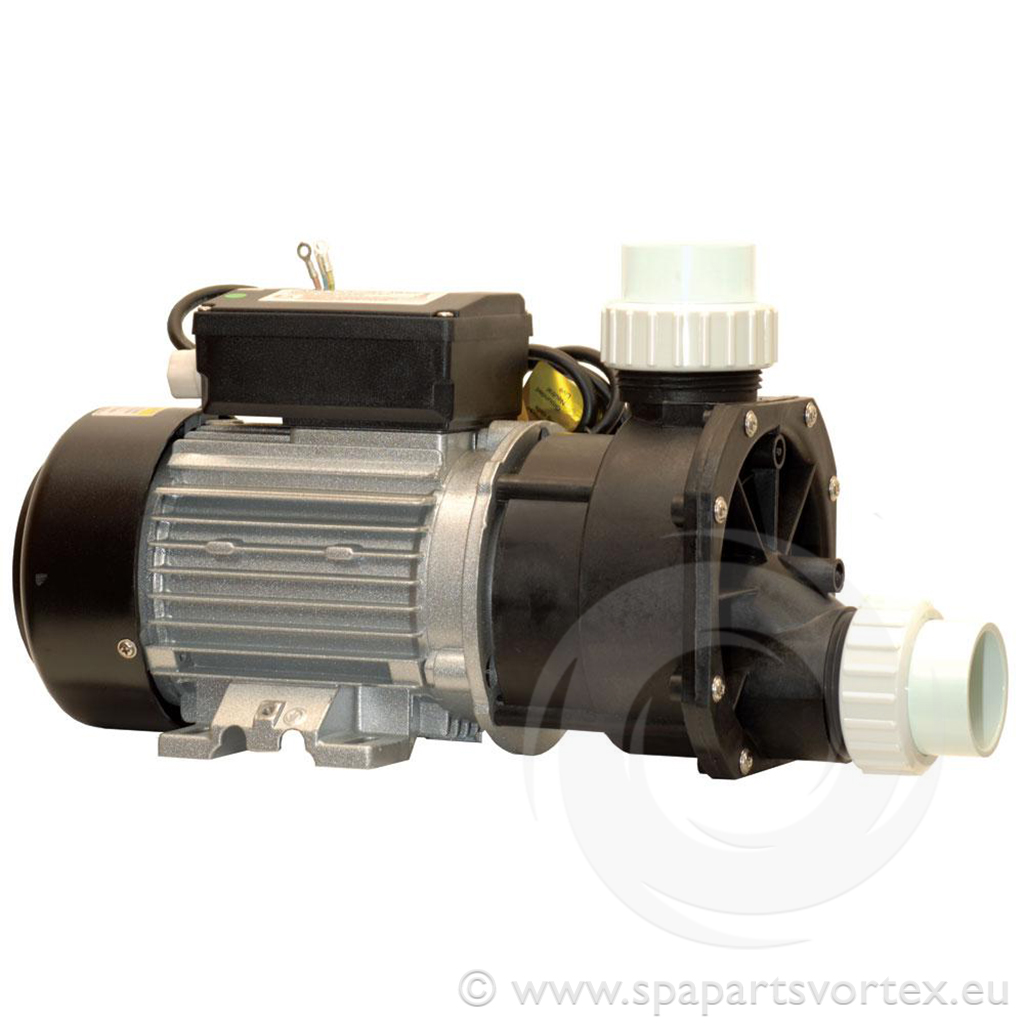

LX EA350 Circulation Pump with Optional Air Switch
The LX EA350 is a 1.0 HP circulation pump commonly used in hot tubs and whirlpool baths.
Specifications:
- Motor Power: 1.0 HP (0.75 kW)
- Current Draw: 3.8 A
- Rotational Speed: 2,900 RPM
- Connections: 1.5-inch suction and discharge ports
Features:
- Design: Center discharge, self-draining
- Construction: Thermally protected motor with 15 µF capacitor
- Performance: Maximum flow rate of 320 L/min; maximum head of 11 m
- Compatibility: Works with AMC Winer Spas, Passion Spas, Wellis Spas, and DanZ Spas
Product Attributes
| Product Type : Circulation Pump |
| Brand : LX |
| Plumbing Connection : 1.5" |
| HP : 1.0 HP |
| Length : 380 mm |
| Width : 160 mm |
| Power kW : 0.75 kW |
| Height : 205 mm |
Product Attributes
| Product Type : Circulation Pump |
| Brand : LX |
| Plumbing Connection : 1.5" |
| HP : 1.0 HP |
| Length : 380 mm |
| Width : 160 mm |
| Power kW : 0.75 kW |
| Height : 205 mm |
