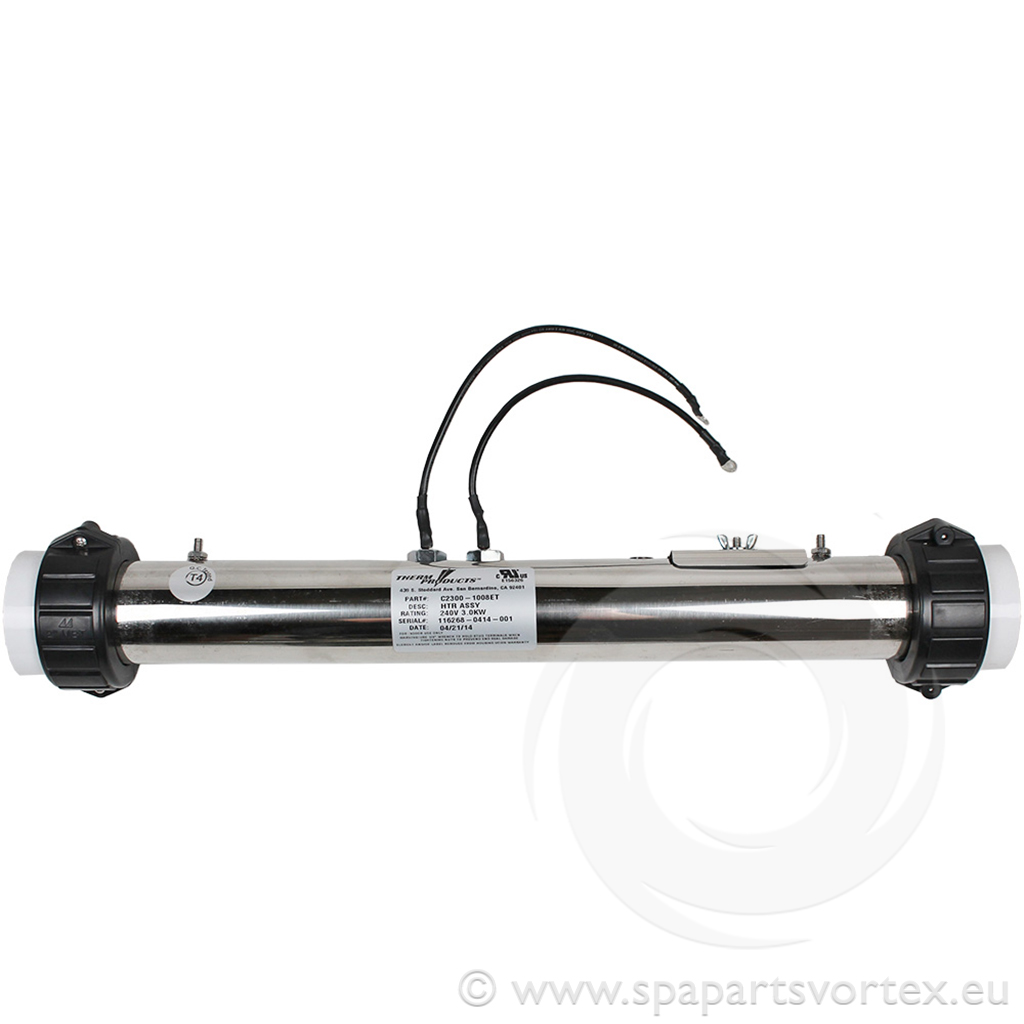

3kw Vita Spa Flow Thru Heater C2300-0010ET
Product Description
Box Quantity: 5
Power: Volts: 230 Hz: 50 KW: 3.0
Specifications:
Material spec: Incoloy
Required flow rate: Set by pressure switch
Flow detection: No pressure switch supplied with the heater
Compatible With: Hot Tubs: Vita Spas. Part Codes: C2300-0010ET
Connections & Fixings: Usually held in with a metal fixing studs at the top of the heater either side of the main heat terminals. Hi-limit sensor pouch on the topside. 2 inches white plastic female sockets to connect to plumbing
Dimensions: Length: 444.5 mm Diameter: 50.8 mm Between terminals: 31.75 mm
Additional Notes:
Can be used to replace HT-TH21U (C2300-1008ET)
You may find cheaper versions of this heater on the internet but they are most likely cheap copies. If it is not an official Thermcore, Aquatemp or Balboa product with genuine labelling do not buy it.
If your heater looks the same as this one it most probably is but contact us if you need further help.
Product Attributes
Brand: Vita Spa |
Product Type: Common Heater Tube |
Power kW: 3.0kW |
Tube Diameter Reference: 2 inch |
Tube Length: 365mm |
Assembled Length: 480mm |
Element Material: Incoloy |
Product Attributes
Brand: Vita Spa |
Product Type: Common Heater Tube |
Power kW: 3.0kW |
Tube Diameter Reference: 2 inch |
Tube Length: 365mm |
Assembled Length: 480mm |
Element Material: Incoloy |
Product Description
Box Quantity: 5
Power: Volts: 230 Hz: 50 KW: 3.0
Specifications:
Material spec: Incoloy
Required flow rate: Set by pressure switch
Flow detection: No pressure switch supplied with the heater
Compatible With: Hot Tubs: Vita Spas. Part Codes: C2300-0010ET
Connections & Fixings: Usually held in with a metal fixing studs at the top of the heater either side of the main heat terminals. Hi-limit sensor pouch on the topside. 2 inches white plastic female sockets to connect to plumbing
Dimensions: Length: 444.5 mm Diameter: 50.8 mm Between terminals: 31.75 mm
Additional Notes:
Can be used to replace HT-TH21U (C2300-1008ET)
You may find cheaper versions of this heater on the internet but they are most likely cheap copies. If it is not an official Thermcore, Aquatemp or Balboa product with genuine labelling do not buy it.
If your heater looks the same as this one it most probably is but contact us if you need further help.
