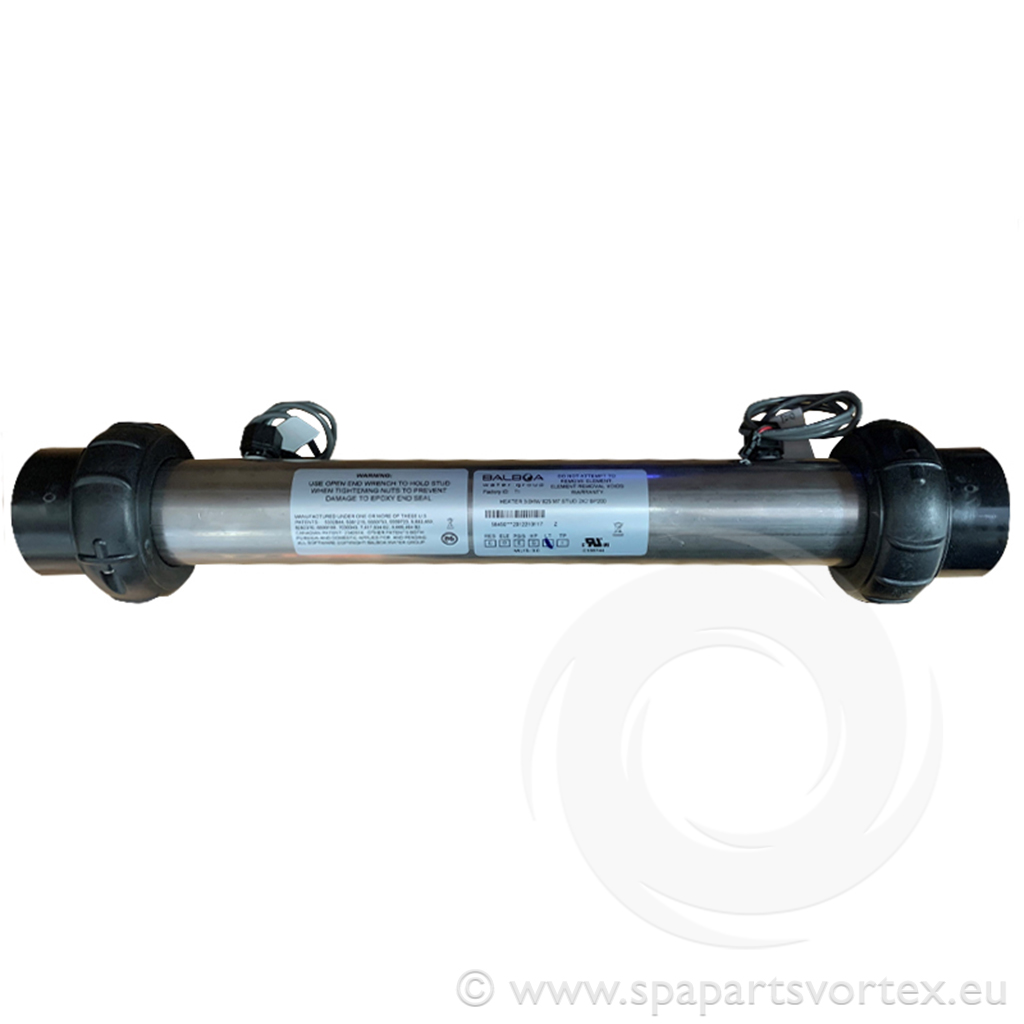

Balboa 2.0KW Heater M7 Plus with Studs for BP200
Product Description
Balboa 2.0kW Heater M7 – Specific to BP200
The Balboa 2.0kW Heater M7 is designed exclusively for the BP200 control box. Its mounting stud locations are specific to this system, ensuring a secure fit and optimal performance. Equipped with M7 Plus Technology, it provides precise temperature control and efficient spa heating.
Key Features:
- Power Specifications:
- Voltage: 230V
- Frequency: 50Hz
- Power: 2.0kW
- Current: 8.0–8.5 Amps
- Sensor Technology: M7 Plus Technology with dual sensors for accurate temperature regulation.
- Material Specification: Constructed from Incoloy 825 for durability and resistance to corrosion.
- Flow Requirements:
- Minimum Flow Rate: 21 GPM
- Integrated flow detection with M7 Technology.
- Connections & Fixings:
- 2-inch plastic female sockets for plumbing connections.
- Mounts with studs specific to the BP200 system.
- Dimensions:
- Length: 495 mm
- Distance Between Terminals: 360 mm
Box Quantity: 1
Product Attributes
| Brand: Balboa |
| Product Type: Common Heater Tube |
| Power kW: 2.0kW |
| Tube Diameter Reference: 2 inch |
| Tube Length: 380mm |
| Assembled Length: 440mm |
| Element Material: Incoloy |
Product Attributes
| Brand: Balboa |
| Product Type: Common Heater Tube |
| Power kW: 2.0kW |
| Tube Diameter Reference: 2 inch |
| Tube Length: 380mm |
| Assembled Length: 440mm |
| Element Material: Incoloy |
