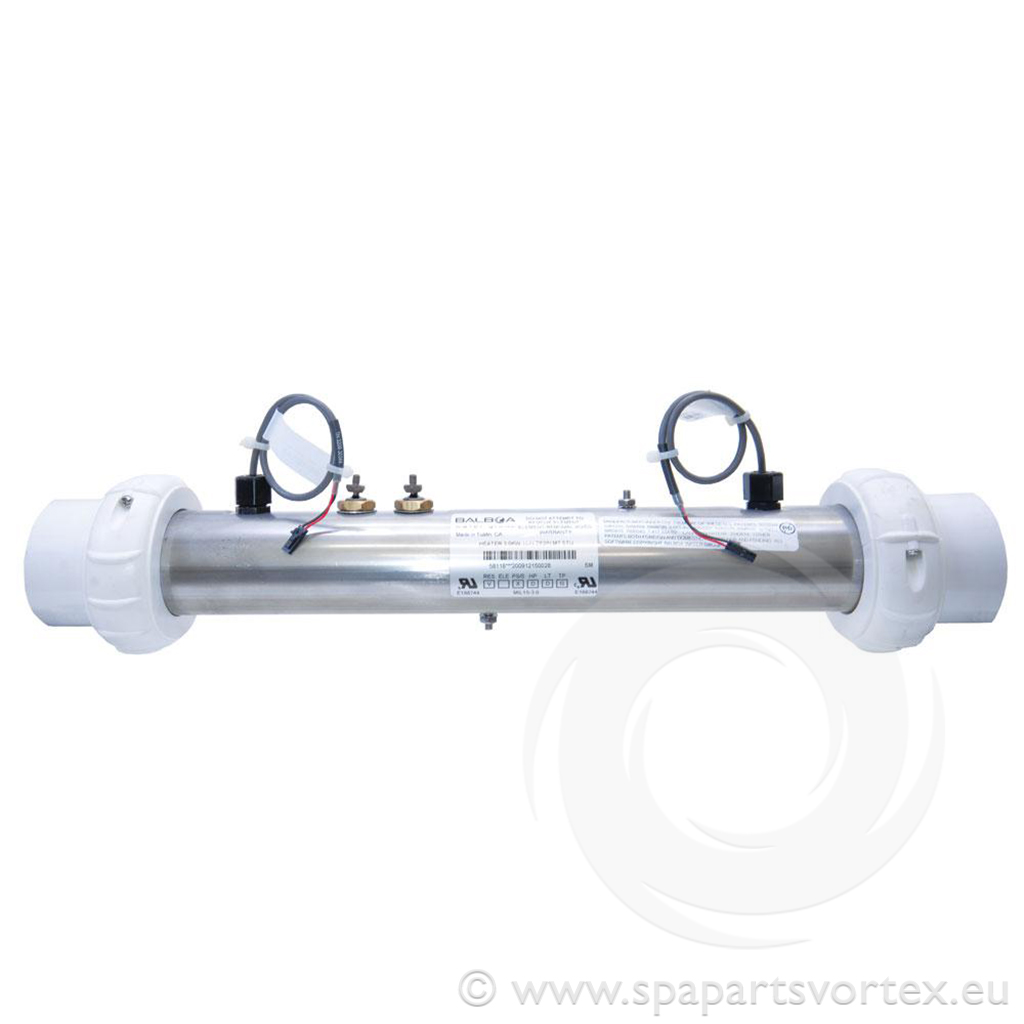

Balboa 3.0KW Heater M7 with Studs (GS-GL)
Product Description
Box Quantity: 16
Power: Volts: 230 Hz: 50 KW: 3.0 Amps: 11.5-12.0
Specifications: Sensor compatibility: M7 24" x 2 Material spec: Incoloy 825 Required flow rate: 21gpm Flow detection: M7 Technology by using a sensor at each end of the heater assembly
Compatible With: GS500, GS500Z, GS501, GS501Z (with 3.0KW on label only), GS501SZ, GS510, GS510S, GS510Z, GS510SZ, GS511SZ, GS523DZ, GL2000 mach 3, GL2001 mach 3 and more
Connections & Fixings: Usually held in with two fixing studs, one at the top and one underneath. 2" white plastic female sockets to connect to plumbing. Will not come with gaskets included.
Dimensions: Length: 381 mm Diameter: 50.8 mm Between terminals: 31.75 mm Overall length complete: 495.3 mm
Additional Notes:
*** NEW BALBOA HEATER REPLACING BALBOA 58118 (HT-BST30) ***
You may find cheaper versions of this heater on the internet but they are most likely cheap copies. If it is not an official Balboa product with genuine labelling do not buy it.
If your heater looks the same as this one it most probably is but contact us if you need further help.
Product Attributes
| Brand: Balboa |
| Product Type: Common Heater Tube |
| Power kW: 3.0kW |
| Tube Diameter Reference: 2 inch |
| Tube Length: 380mm |
| Assembled Length: 440mm |
| Element Material: Incoloy |
Product Attributes
| Brand: Balboa |
| Product Type: Common Heater Tube |
| Power kW: 3.0kW |
| Tube Diameter Reference: 2 inch |
| Tube Length: 380mm |
| Assembled Length: 440mm |
| Element Material: Incoloy |
Product Description
Box Quantity: 16
Power: Volts: 230 Hz: 50 KW: 3.0 Amps: 11.5-12.0
Specifications: Sensor compatibility: M7 24" x 2 Material spec: Incoloy 825 Required flow rate: 21gpm Flow detection: M7 Technology by using a sensor at each end of the heater assembly
Compatible With: GS500, GS500Z, GS501, GS501Z (with 3.0KW on label only), GS501SZ, GS510, GS510S, GS510Z, GS510SZ, GS511SZ, GS523DZ, GL2000 mach 3, GL2001 mach 3 and more
Connections & Fixings: Usually held in with two fixing studs, one at the top and one underneath. 2" white plastic female sockets to connect to plumbing. Will not come with gaskets included.
Dimensions: Length: 381 mm Diameter: 50.8 mm Between terminals: 31.75 mm Overall length complete: 495.3 mm
Additional Notes:
*** NEW BALBOA HEATER REPLACING BALBOA 58118 (HT-BST30) ***
You may find cheaper versions of this heater on the internet but they are most likely cheap copies. If it is not an official Balboa product with genuine labelling do not buy it.
If your heater looks the same as this one it most probably is but contact us if you need further help.
