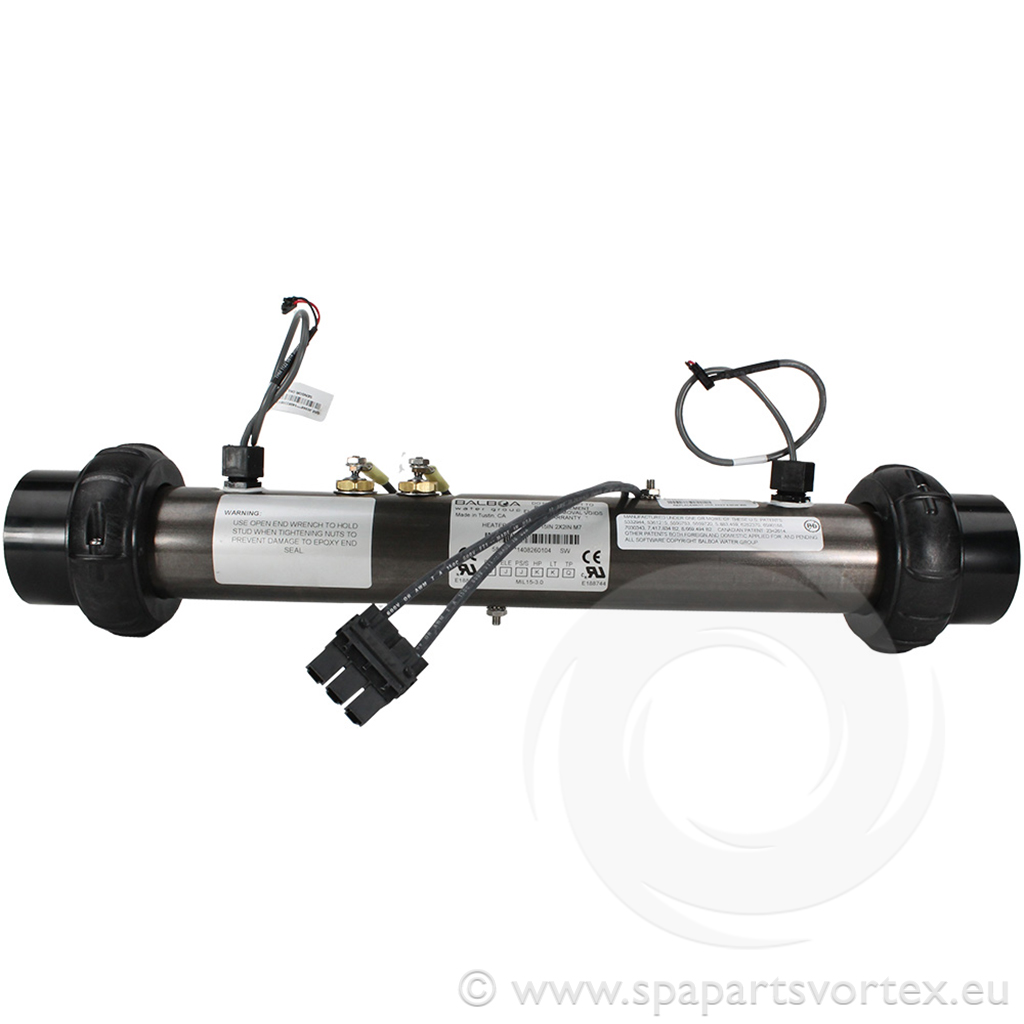

Balboa 3.0KW Heater M7 Plug n Click (BP Series)

https://spaparts.glodo.cloud/web/image/product.template/96/image_1920?unique=68f3651

Not Available For Sale

  • Brand
  • Product Type
  • Power kW
  • Tube Diameter Reference
  • Tube Length
  • Assembled Length
  • Element Material

This combination does not exist.

Contact Us
  • VISA
  • Mastercard
  • Paypal
  • Google Pay
  • Apple Pay
Product Description
Box Quantity: 1 Power: Volts: 230 Hz: 50 KW: 3.0 Amps: 11.5-12.0 Specifications: Sensor compatibility: M7 24 inch x 2 Material spec: Incoloy Required flow rate: 21gpm Flow detection: M7 Technology by using a sensor at each end of the heater assembly Compatible With: BP500/501, BP600/601, and BP2100 Connections & Fixings: Usually held in with two fixing studs, one at the top and one underneath. 2 inch white plastic female sockets to connect to plumbing. Purpose fitted plastic plug to connect to PCB to avoid damage to heater terminals and speedy replacement time. Dimensions: Length: 381 mm Diameter: 50.8 mm Between terminals: 31.75 mm Overall length complete: 495.3 mm Additional Notes: No need to deal with heater straps, screws, wrenches, or broken copper straps. All you need to do is plug-and-click and you're done! Previously a restricted after sales item but available to general trade once more.
Product Attributes
Brand: Balboa
Product Type: Common Heater Tube
Power kW: 3.0kW
Tube Diameter Reference: 2 inch
Tube Length: 380mm
Assembled Length: 440mm
Element Material: Incoloy
Product Attributes
Brand: Balboa
Product Type: Common Heater Tube
Power kW: 3.0kW
Tube Diameter Reference: 2 inch
Tube Length: 380mm
Assembled Length: 440mm
Element Material: Incoloy
