Tech Spec

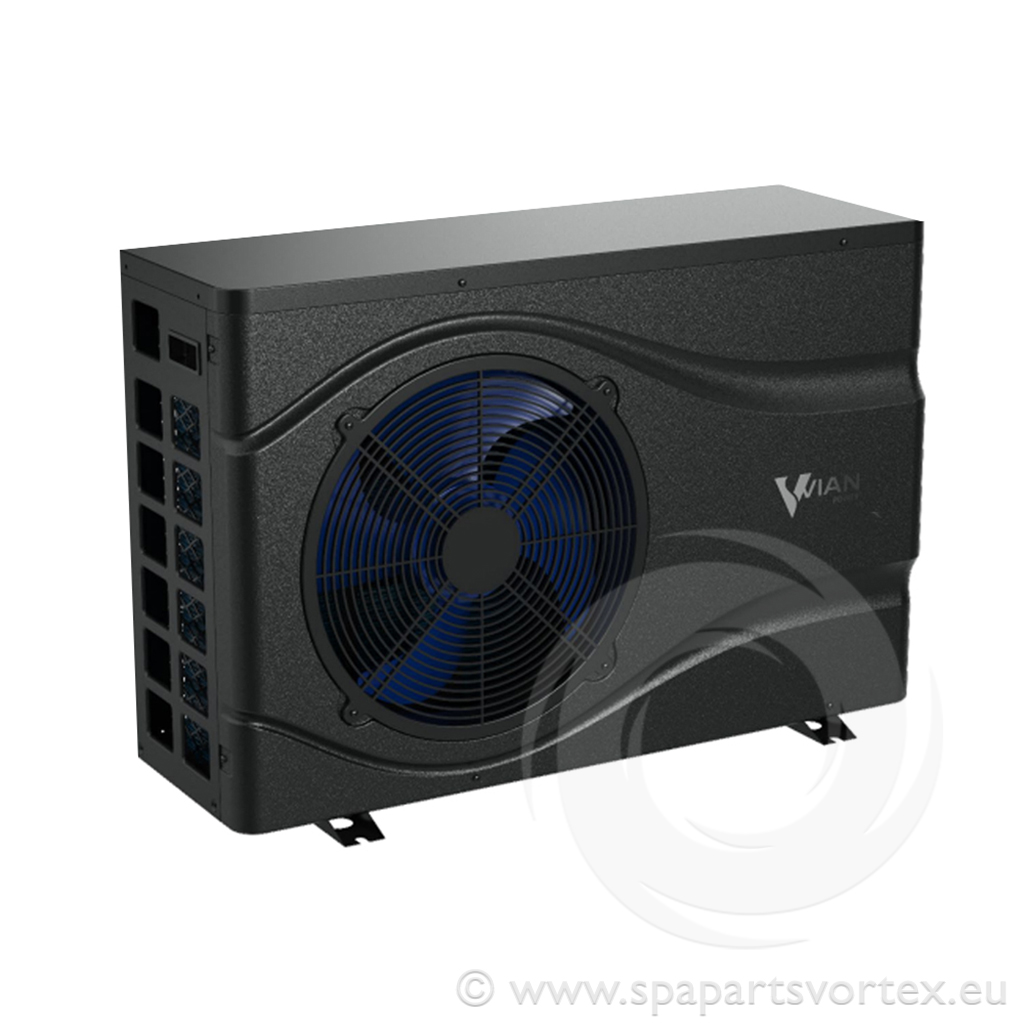

Vian Power S7 plus | ||
Full DC Inverter Heat Pump | ||
KW Out @ | C.O.P @ | |
CAPACITY @ ℃ | 100 - 50 % Power | 100 - 50 % Power |
Plus 25 ℃ | 7.02 - 3.51 | 6.14 - 10.96 |
Plus 20 ℃ | 6.20 - 3.10 | 5.56 - 8.58 |
Plus 15 ℃ | 5.40 - 2.70 | 4.9 - 6.86 |
Plus 10 ℃ | 4.77 - 2.39 | 4.35 - 5.59 |
Plus 05 ℃ | 4.42 - 2.21 | 4.00 - 5.03 |
0.0 ℃ | 4.06 - 2.03 | 3.65 - 4.48 |
Minus 5 ℃ | 3.54 - 1.77 | 3.08 - 3.95 |
Minus 10 ℃ | 3.03 - 1.52 | 2.48 - 3.59 |
Capacity KW 27/24 (DB/WB) | 1.5kw - 7.21kw | |
Usage | Hot Tub or SwimSpa | |
Type | Full DC Inverter Technology | |
Max Power Draw | 0.09 - 1.09 KW | |
Power Supply | 220-240 V 50HZ Single Phase | |
Power Cable | 5mtrs H07RN-F cable | |
Ambient Temp Operating Range | minus 10℃ to plus 43 ℃ | |
Heating Range | 15℃ to 40℃ | |
Cooling Function | ✓ | |
Max Water Volume | 30m3 (30,000 ltrs) | |
Refrigerant | R32 | |
Compressor | Rotary | |
Heat Exchanger | Titanium | |
Gas Control | (EEV) Electronic Expansion Valve | |
Sound @ 1m DB | 32 to 45 | |
Required Flow Rate | 3.1 mh3 (51.6 lpm) | |
Input Line Control | ✓ | |
Pump Power Circuit 1.59 (A) max | ✓ | |
WI-FI | ✓ | |
Unit Size (L-D-H) mm | 910 / 355 / 620 | |
Net Weight kg | 35 KG |
