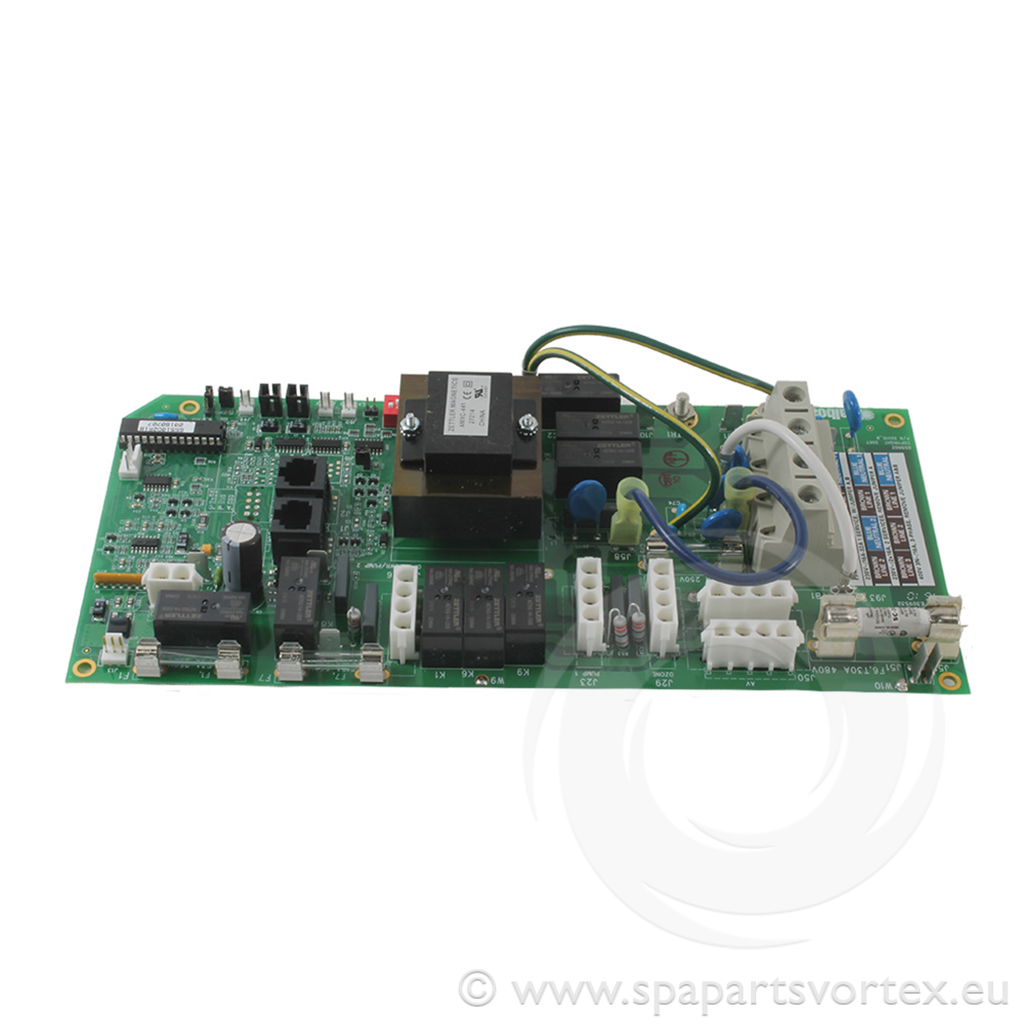

Balboa GS510DZ PCB
Product Description
Box Quantity: 1. Dimensions: Length: 280 mm Height: 130 mm
Volts: 230 Hz: 50
Pump 1: Single or dual speed + circulation pump if required
Pump 2: Single speed
Pump 3: N/A
Air Blower: Yes (optional)
Heater: Yes
Ozone: Yes
Light: 12 volt
Sensor style: M7 x 2
Pressure Switch: No
Compatible With: GS510DZ control box. Topside controls from the Deluxe VL range such as the VL801D and the VL802D.
Additional Notes:
This PCB is used as a replacement for an existing GS510DZ control box with a PCB failure. This must not be fitted to any other device/product. This should be done by an experienced tradesman or a competent individual as a faulty install could result in board damage and invalidate the warranty.
*SPECIAL NOTE* J17 IS A PORT THAT ALLOWS YOU TO RUN EITHER AN AIR BLOWER OR ANOTHER SINGLE SPEED PUMP. THE PORT IS PROTECTED BY A 10 AMP QUICK BLOW FUSE.
Volts: 230 Hz: 50
Pump 1: Single or dual speed + circulation pump if required
Pump 2: Single speed
Pump 3: N/A
Air Blower: Yes (optional)
Heater: Yes
Ozone: Yes
Light: 12 volt
Sensor style: M7 x 2
Pressure Switch: No
Compatible With: GS510DZ control box. Topside controls from the Deluxe VL range such as the VL801D and the VL802D.
Additional Notes:
This PCB is used as a replacement for an existing GS510DZ control box with a PCB failure. This must not be fitted to any other device/product. This should be done by an experienced tradesman or a competent individual as a faulty install could result in board damage and invalidate the warranty.
*SPECIAL NOTE* J17 IS A PORT THAT ALLOWS YOU TO RUN EITHER AN AIR BLOWER OR ANOTHER SINGLE SPEED PUMP. THE PORT IS PROTECTED BY A 10 AMP QUICK BLOW FUSE.
Product Attributes
| Brand: Balboa |
| Product Type: PCB |
| Length: 280mm |
| Width: 130mm |
| Model / Series: GS |
| Circ Pump: Yes |
| No. of Pumps: 2 |
| Blower: Yes |
