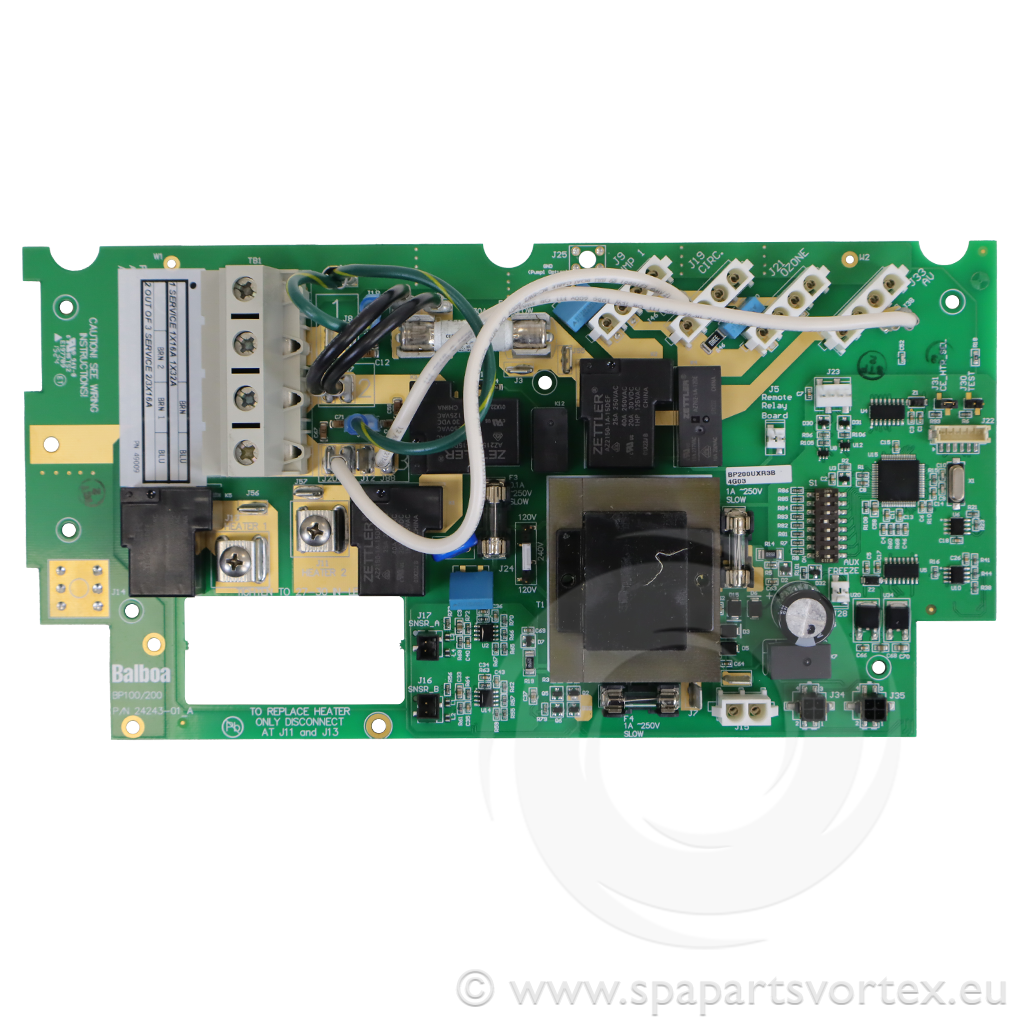

Balboa BP200UX 3.0KW PCB
Product Description
Box Quantity: 1
Volts: 230 Hz: 50.
Pump 1: Single or dual speed pump + circulation pump if required.
Pump 2: Single or dual speed Pump 3: Single or dual speed
Air Blower: x 1 (optional)
Heater: x 1 (3kW)
Ozone: x 1
Light: x1, 10v @ 1amp Max
Radio, TV/AV: Point available
Feature: Designed for use with WiFi receiver for iPhone operation.
Compatible With: BP200 control box. Topside controls from the serial standard TP range such as the TP900, TP800, TP600 and TP400.
This PCB is used as a replacement for an existing BP200 control box with a PCB failure.
This must not be fitted to any other device/product. This should be done by an experienced tradesman or a competent individual as a faulty install could result in board damage and invalidate the warranty.
The new version of this PCB has a new transformer that can handle more for newer Balboa equipment. It is a red transformer, rather than a black one.
Volts: 230 Hz: 50.
Pump 1: Single or dual speed pump + circulation pump if required.
Pump 2: Single or dual speed Pump 3: Single or dual speed
Air Blower: x 1 (optional)
Heater: x 1 (3kW)
Ozone: x 1
Light: x1, 10v @ 1amp Max
Radio, TV/AV: Point available
Feature: Designed for use with WiFi receiver for iPhone operation.
Compatible With: BP200 control box. Topside controls from the serial standard TP range such as the TP900, TP800, TP600 and TP400.
This PCB is used as a replacement for an existing BP200 control box with a PCB failure.
This must not be fitted to any other device/product. This should be done by an experienced tradesman or a competent individual as a faulty install could result in board damage and invalidate the warranty.
The new version of this PCB has a new transformer that can handle more for newer Balboa equipment. It is a red transformer, rather than a black one.
