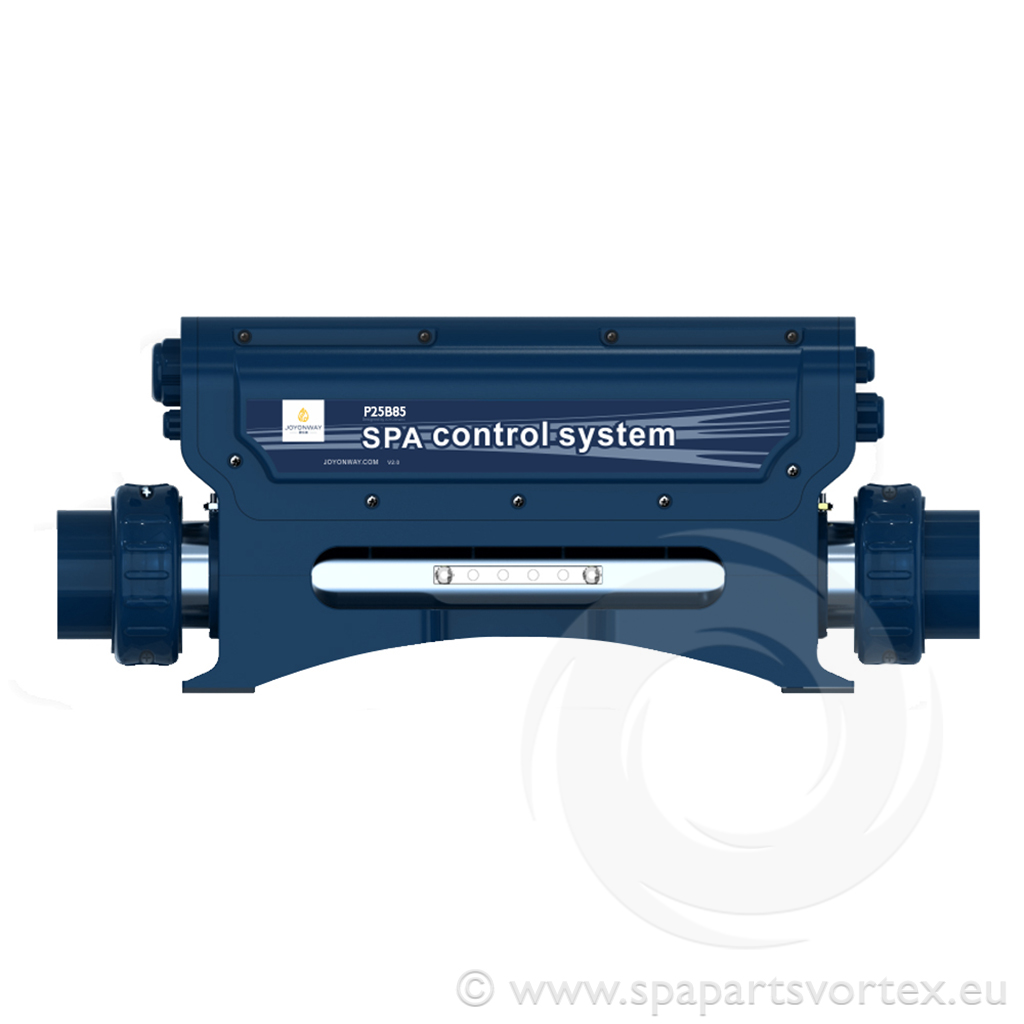

Joyonway P25B85 Control Box
Product Description
Box Quantity: 1. Dimensions: Length: 434 mm (inc heater) 360 mm (box only) Width: 82 mm Height: 201 mm
Volts: 230vac Hz: 50 Amps: 16A
Pump 1: Single or dual speed pump + circulation pump if required.
Pump 2: n/a
Air Blower: x 1
Heater: x 1 (2KW)
Ozone: x 1
Light: x1, 12 volt
TV/AV: n/a
Compatible With: PB557 topside control
Connections: 2-inch socket heater union sleeves.
This is a generic unlicensed control box. This unit must be fitted by a competent
Volts: 230vac Hz: 50 Amps: 16A
Pump 1: Single or dual speed pump + circulation pump if required.
Pump 2: n/a
Air Blower: x 1
Heater: x 1 (2KW)
Ozone: x 1
Light: x1, 12 volt
TV/AV: n/a
Compatible With: PB557 topside control
Connections: 2-inch socket heater union sleeves.
This is a generic unlicensed control box. This unit must be fitted by a competent
Product Attributes
Brand: Joyonway |
Product Type: Control Box |
Max Pumps: 1 |
Power kW: 3.0kW |
Circ Pump: Yes |
Blower: Yes |
Total Comp. Relays: 3 |
Heater Size: 2 Inch |
Product Attributes
Brand: Joyonway |
Product Type: Control Box |
Max Pumps: 1 |
Power kW: 3.0kW |
Circ Pump: Yes |
Blower: Yes |
Total Comp. Relays: 3 |
Heater Size: 2 Inch |
