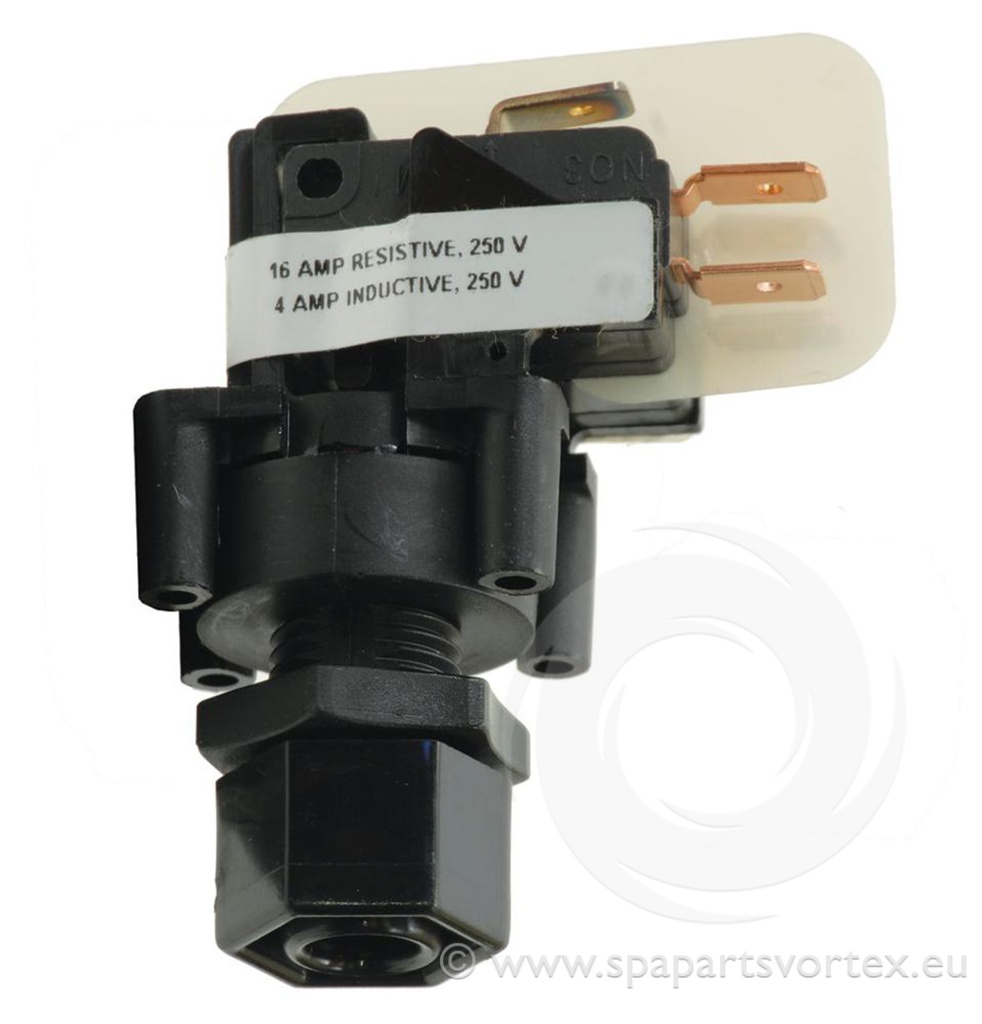

Air Switch TBS125 - alt, DPDT 16amp
Product Description
Air Switch / Pneumatic Switch- Manufactured by Techmark TBS125 - Double Pole, Double Throw
This means that instead of the switch being simply on or off, with an additional circuit connected to the lower spade, instead of being off it is now performing a 2nd operation. This can be used to toggle between a low and high speed or for use with an indicator light for example. This switch is an alternate action meaning it will hold in position 1 and then hold in position 2 when actuated. With the double pole operation this means 2 appliances can be operated on the same switch. Height: 57mm Width: 25mm (at widest point) Depth: 50mm (from front to rear spade)
Up to 250vac. 16A resistive (meaning use with a heater for example), 4A inductive (meaning use with a 1HP pump for example) Fits hole size:15mm - With the additional use of a timer controlling the incoming power this switch is often used to toggle between settings on the system it is operating. Basic operation is to switch either directly an appliance or a relay.
This means that instead of the switch being simply on or off, with an additional circuit connected to the lower spade, instead of being off it is now performing a 2nd operation. This can be used to toggle between a low and high speed or for use with an indicator light for example. This switch is an alternate action meaning it will hold in position 1 and then hold in position 2 when actuated. With the double pole operation this means 2 appliances can be operated on the same switch. Height: 57mm Width: 25mm (at widest point) Depth: 50mm (from front to rear spade)
Up to 250vac. 16A resistive (meaning use with a heater for example), 4A inductive (meaning use with a 1HP pump for example) Fits hole size:15mm - With the additional use of a timer controlling the incoming power this switch is often used to toggle between settings on the system it is operating. Basic operation is to switch either directly an appliance or a relay.
Product Attributes
| Brand: Tecmark |
| Product Type: Air Switch |
| Function: DPDT |
