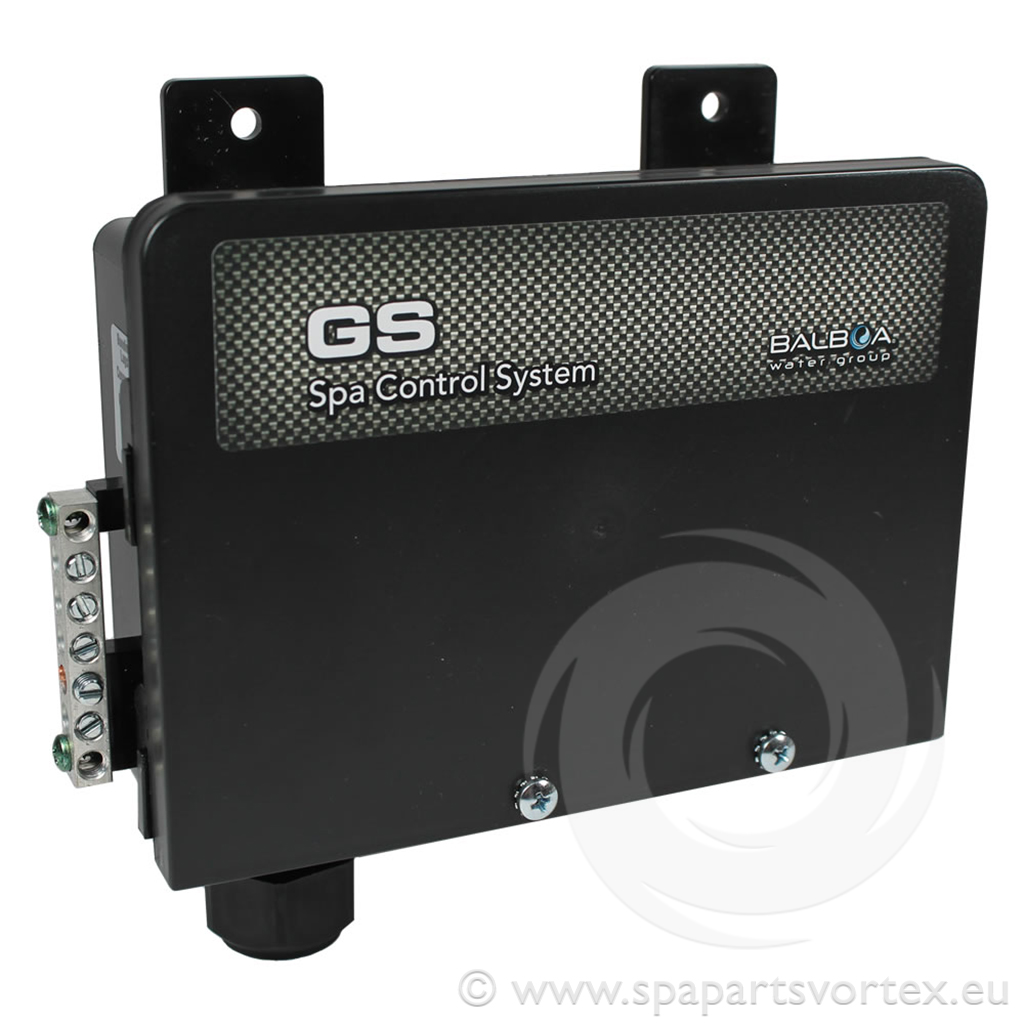

(Boitier 1.2) Boitier Balboa GS100 sans réchauffeur (nouveau style)
Description du produit
Box Quantity: 5. Dimensions: Main plastic unit only Length: 190 mm Width: 60 mm Height: 137 mm
Volts: 230vac Hz: 50 Amps: 16A
Pump 1: Dual speed pump 1
Pump 2: N/A
Air Blower: N/A
Heater: x 1 (2kW), Heater is a separate unit (sold separately) which plugs into the board.
Ozone: x 1 (230vac)
Light: x1, 12 volt
TV/AV: N/A
Works with any Mini or Duplex panel such as VL200,240,260 or VL401,402,403,404. This system is ideal for small roto mould spas with tight spaces to work in and small spa system upgrades.
This is a very useful entry level system. It has a small, easy to mount, easy to set control box and a separate remote heater.
This unit allows you to program timeout functions for both speeds of the pump via 2 dip switches.
This is a generic unlicensed control box. This unit must be fitted by a competent individual or tradesman. Incorrect installation could invalidate the warranty.
Volts: 230vac Hz: 50 Amps: 16A
Pump 1: Dual speed pump 1
Pump 2: N/A
Air Blower: N/A
Heater: x 1 (2kW), Heater is a separate unit (sold separately) which plugs into the board.
Ozone: x 1 (230vac)
Light: x1, 12 volt
TV/AV: N/A
Works with any Mini or Duplex panel such as VL200,240,260 or VL401,402,403,404. This system is ideal for small roto mould spas with tight spaces to work in and small spa system upgrades.
This is a very useful entry level system. It has a small, easy to mount, easy to set control box and a separate remote heater.
This unit allows you to program timeout functions for both speeds of the pump via 2 dip switches.
This is a generic unlicensed control box. This unit must be fitted by a competent individual or tradesman. Incorrect installation could invalidate the warranty.
Attributs du produit
| Marque: Balboa |
| Type de produit: Boîtier de commande |
| Longueur Max: 190 mm |
| Hauteur Max: 150 mm |
| Pompes Max: 1 |
| Puissance kW: n/a |
| Circ Pump: Oui |
| Souffleur: Non |
| Profondeur Max: 60 mm |
| Relais informatiques totaux: 2 |
| Dimension du chauffage: n/a |
Attributs du produit
| Marque: Balboa |
| Type de produit: Boîtier de commande |
| Longueur Max: 190 mm |
| Hauteur Max: 150 mm |
| Pompes Max: 1 |
| Puissance kW: n/a |
| Circ Pump: Oui |
| Souffleur: Non |
| Profondeur Max: 60 mm |
| Relais informatiques totaux: 2 |
| Dimension du chauffage: n/a |
Description du produit
Box Quantity: 5. Dimensions: Main plastic unit only Length: 190 mm Width: 60 mm Height: 137 mm
Volts: 230vac Hz: 50 Amps: 16A
Pump 1: Dual speed pump 1
Pump 2: N/A
Air Blower: N/A
Heater: x 1 (2kW), Heater is a separate unit (sold separately) which plugs into the board.
Ozone: x 1 (230vac)
Light: x1, 12 volt
TV/AV: N/A
Works with any Mini or Duplex panel such as VL200,240,260 or VL401,402,403,404. This system is ideal for small roto mould spas with tight spaces to work in and small spa system upgrades.
This is a very useful entry level system. It has a small, easy to mount, easy to set control box and a separate remote heater.
This unit allows you to program timeout functions for both speeds of the pump via 2 dip switches.
This is a generic unlicensed control box. This unit must be fitted by a competent individual or tradesman. Incorrect installation could invalidate the warranty.
Volts: 230vac Hz: 50 Amps: 16A
Pump 1: Dual speed pump 1
Pump 2: N/A
Air Blower: N/A
Heater: x 1 (2kW), Heater is a separate unit (sold separately) which plugs into the board.
Ozone: x 1 (230vac)
Light: x1, 12 volt
TV/AV: N/A
Works with any Mini or Duplex panel such as VL200,240,260 or VL401,402,403,404. This system is ideal for small roto mould spas with tight spaces to work in and small spa system upgrades.
This is a very useful entry level system. It has a small, easy to mount, easy to set control box and a separate remote heater.
This unit allows you to program timeout functions for both speeds of the pump via 2 dip switches.
This is a generic unlicensed control box. This unit must be fitted by a competent individual or tradesman. Incorrect installation could invalidate the warranty.
